Pentair SuperFlo Wet-End Rebuild: Parts Set, Seal Refresh and Reassembly Order

Pentair's SuperFlo line is one of the most common inground pumps on US residential pads, and by the time one starts dripping or losing prime the motor is usually still perfectly serviceable. In most of those cases the economical fix is a wet-end rebuild, not a new pump. This guide walks through what a SuperFlo rebuild parts set covers, what to inspect once the pump is open, and a reassembly order that prevents repeat leaks.

Rebuild or replace

Every pump is two machines bolted together: the motor and the wet end. Electrical faults, seized bearings, humming starts and tripped breakers point at the motor. Leaks, low flow, air in the basket and priming problems almost always point at the wet end. If the motor spins freely, draws normally and runs quietly, replacing the wear parts in the wet end restores the pump for a fraction of the cost of a complete unit.

For a service company the math is straightforward. A wet-end rebuild is one truck visit with parts that fit in a small box, and it leaves the existing plumbing, mounting and wiring untouched. A full pump swap means cutting in new unions or adapting old ones, possibly redoing electrical, and on variable-speed models reprogramming schedules. Rebuild first whenever the motor checks out, and quote a replacement only when the motor and the wet end are both at end of life.

What a SuperFlo parts set covers

POOLPOINT manufactures two service bundles for the SuperFlo platform:

• 356071Z — SuperFlo Pump Wet End Parts Set, cross-referenced to Pentair 354545S, 355619 and 356071Z.

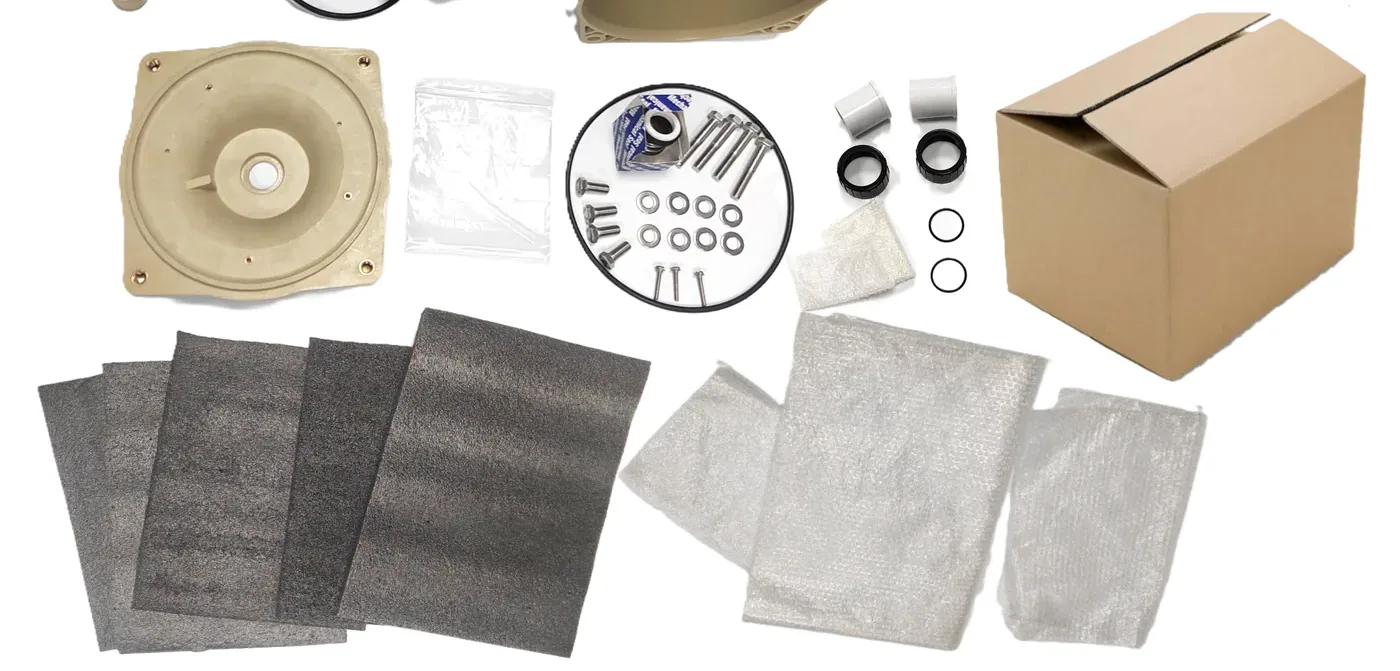

• 350089 — SuperFlo Inground Pump Rebuild Parts Set, cross-referenced to Pentair 350089, 350090, 350091, 350157, 355667 and 356071Z.

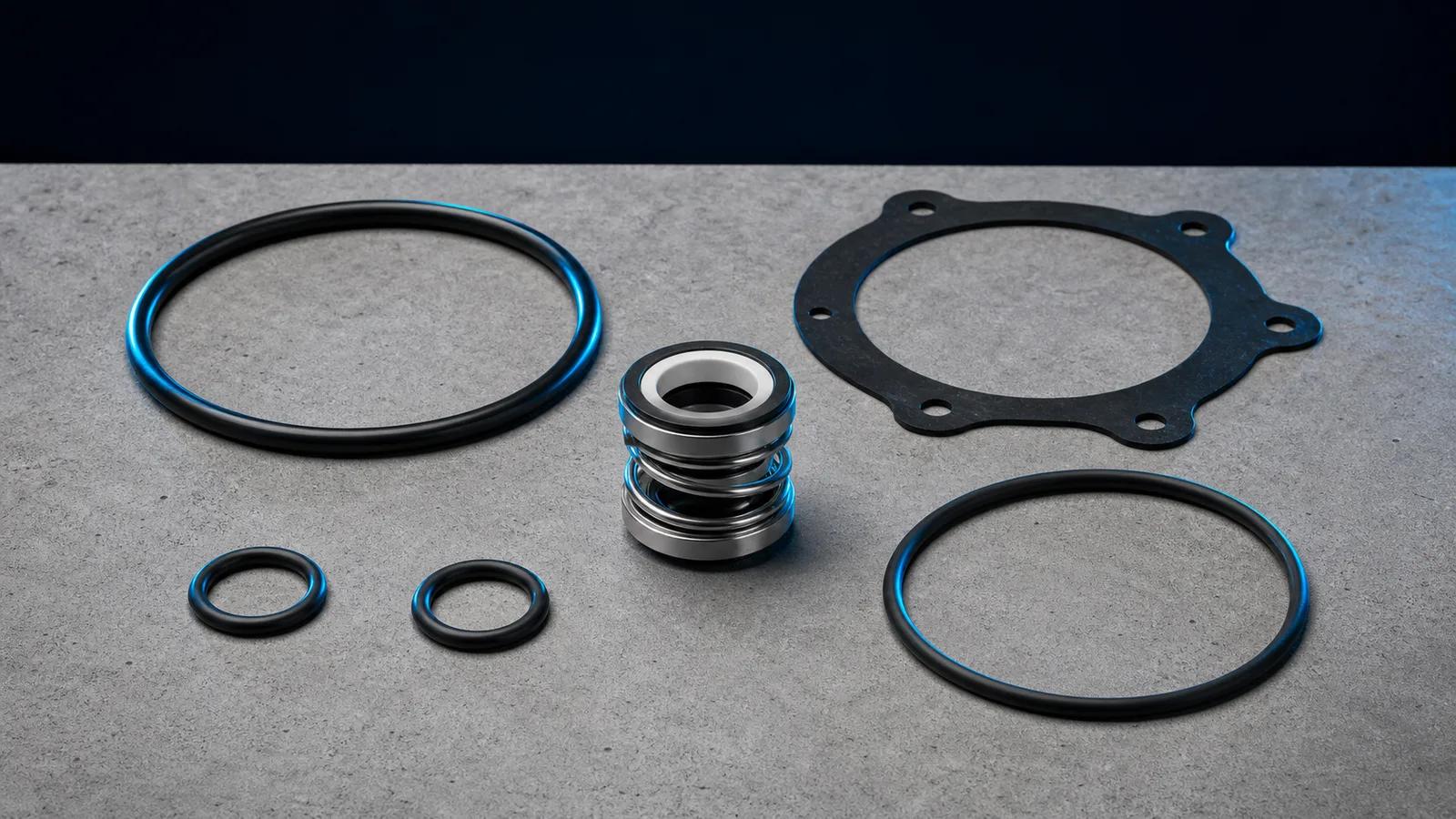

Between them, the two sets cover the wear points a wet-end service touches: the rotating shaft seal, the body o-rings that seal the housing joints and lid, and the plastic hydraulic parts that erode after years of continuous flow. Identify the OEM number printed on the part you are replacing, or pull it from the pump's parts diagram, and match it against the cross-reference table at the end of this article before ordering. That number, not the pump's model name alone, is what guarantees fit.

Symptoms that call for a wet-end service

• A drip or a white scale trail under the pump between the motor and the strainer housing — the classic signature of a failing shaft seal.
• Air bubbles in the pump basket or at the pool returns even though the lid is clean and tight — suspect a hardened lid o-ring or a sealing problem deeper in the wet end.
• Weak flow with a clean filter and empty baskets — worn or debris-clogged hydraulic parts.
• The pump loses prime overnight — o-rings or drain plug seals are letting the wet end drain back.

Any one of these justifies opening the pump. If the seal has started to leak, plan on refreshing the o-rings in the same visit rather than coming back for them later.

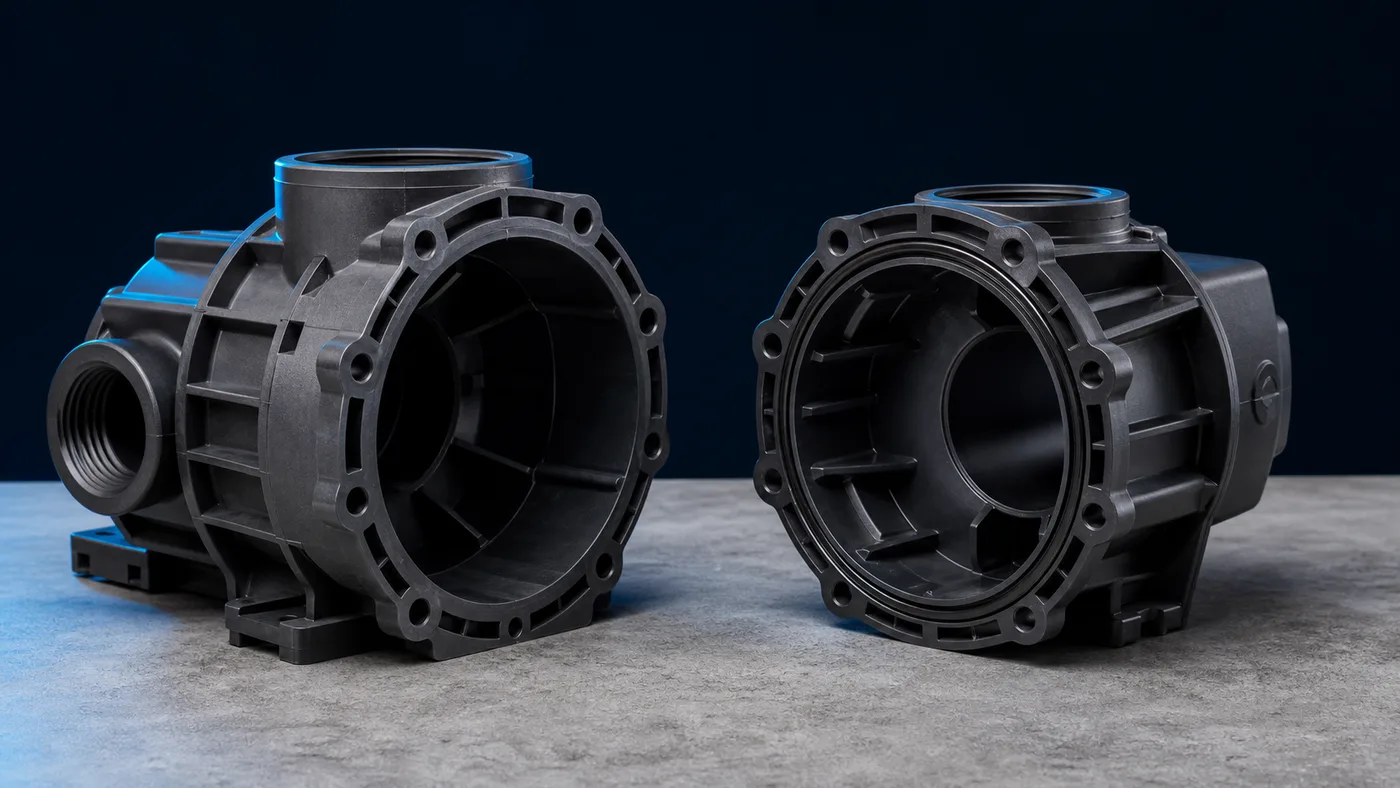

Teardown and inspection

Before touching the pump, shut off power at the breaker — not just at the timer or automation panel — and relieve pressure at the filter's air relief valve. If the pump sits below water level, close the isolation valves or plug the lines first.

1. Remove the fasteners that join the motor assembly to the strainer housing and pull the motor, seal plate and impeller back as one unit.
2. Inspect the impeller for cracked, chipped or clogged vanes. Pebbles, mulch and leaf stems pass through skimmer baskets more often than most owners believe.
3. Check the diffuser and its seal. Wear here lets water recirculate inside the wet end instead of moving toward the filter, which shows up as weak flow that no amount of filter cleaning fixes.
4. Examine the shaft seal faces. Any groove, chip or mineral deposit means replacement; a mechanical seal is not reusable once its faces have been separated.
5. Roll every o-ring between your fingers. Flat spots, nicks, cracking or a squared-off cross-section all mean the ring has taken a set and will not seal reliably again.

While the wet end is apart, flush sand and debris out of the housing and inspect the drain plugs and their seals — they are a favorite source of slow prime loss.

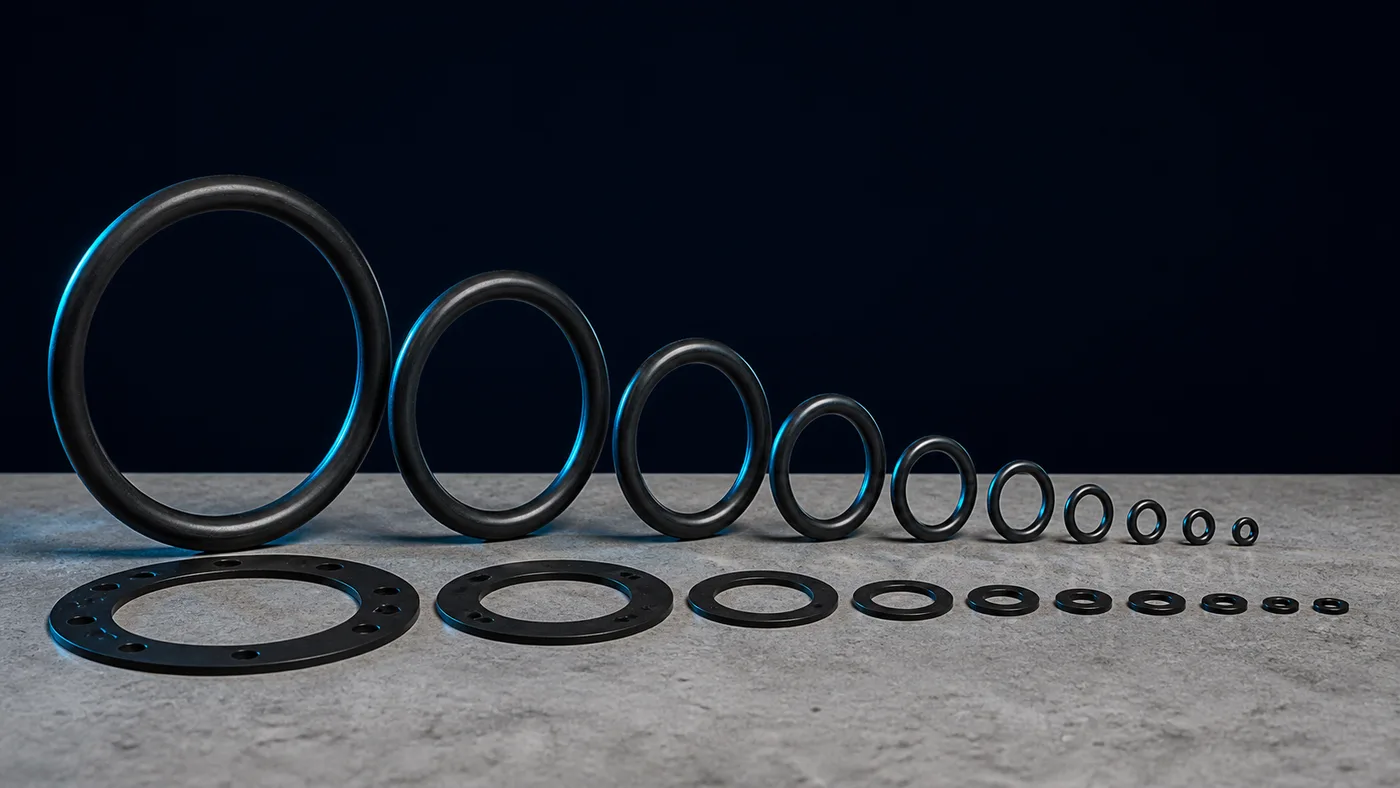

Refresh every seal while you are in there

Labor dominates the cost of this job; the parts are cheap by comparison. Replacing only the part that visibly failed is the most common cause of a callback two or three weeks later, when the next-oldest o-ring starts weeping under fresh assembly stress. On a pump that has been in service for several seasons, treat the shaft seal and the o-rings as a single consumable group and change them together. Lubricate o-rings with a silicone- or PTFE-based pool lubricant only — petroleum products swell and soften the rubber.

Reassembly order

On plastic pump bodies, sequence matters more than force:

1. Seat the new shaft seal square to its bore. Press on the metal case only, never on the polished sealing face, and keep the faces free of fingerprints and lubricant.
2. Install the impeller and spin it by hand to confirm it turns without rubbing.
3. Fit the diffuser with its seal, engaging any locating tabs before pressing it home.
4. Renew the main housing o-ring, then bring the motor assembly back to the strainer housing. Tighten fasteners in a cross pattern, a little at a time, until evenly snug — uneven torque cracks mounting lugs and pinches o-rings.
5. Reinstall the drain plugs, basket and lid, with the lid o-ring cleaned, lubricated and hand-tightened.

Fill the strainer pot with water, restore power and let the pump prime. Watch the seal area for the first several minutes of running: a faint mist while new seal faces bed in is normal, a steady drip is not.

Cross-reference table

Always verify the number on the part coming off the pump before ordering. Hydraulic parts changed across pump revisions, and the OEM number is the only reliable identifier of the correct service set.

Sourcing

POOLPOINT manufactures both SuperFlo service sets factory-direct for US distributors, pool service companies and online sellers. MOQ starts at 50 pcs per SKU, and private label packaging is available — request a quote for wholesale pricing and lead times.
