Jandy Pump Lid Replacement and the Quick-Service Parts Every Truck Should Stock

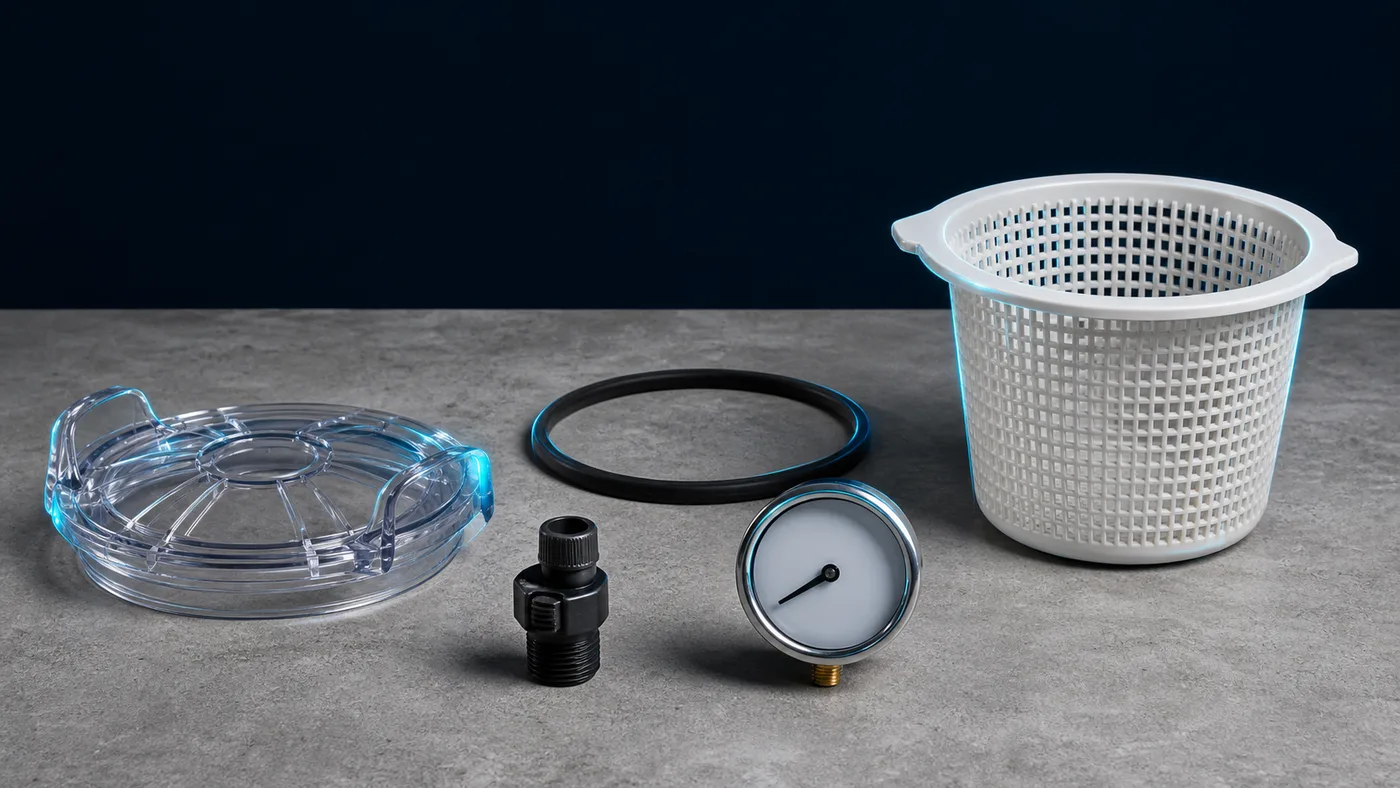

Walk the parts racks of any service truck that runs Jandy pads and you will find the same handful of items doing most of the work: pump lids, lid o-rings, strainer baskets, diffusers and the air-release hardware on top of the filter. These consumables close out more Jandy service calls than any motor or control board, and having them on hand is the difference between a fifteen-minute fix and a second truck roll. Below is a working guide to the Jandy quick-service parts worth stocking, with a closer look at pump lid replacement and filter air-release service.

Why small parts decide the service call

A Jandy pad rarely fails all at once. What actually generates calls is the slow attrition of plastic and rubber: a lid that has been cranked down dry a hundred times, an o-ring that has gone flat, a basket handle that snapped over the winter, a pressure gauge stuck at zero. None of these parts justifies a dedicated supply-house run on its own, which is exactly why they should already be on the truck. Techs who stock Jandy wet-end consumables bill the same visit for the diagnosis and the fix, and the customer sees a working pad before the truck leaves the driveway. Companies that do not stock them eat the second trip, and the margin on the call goes with it.

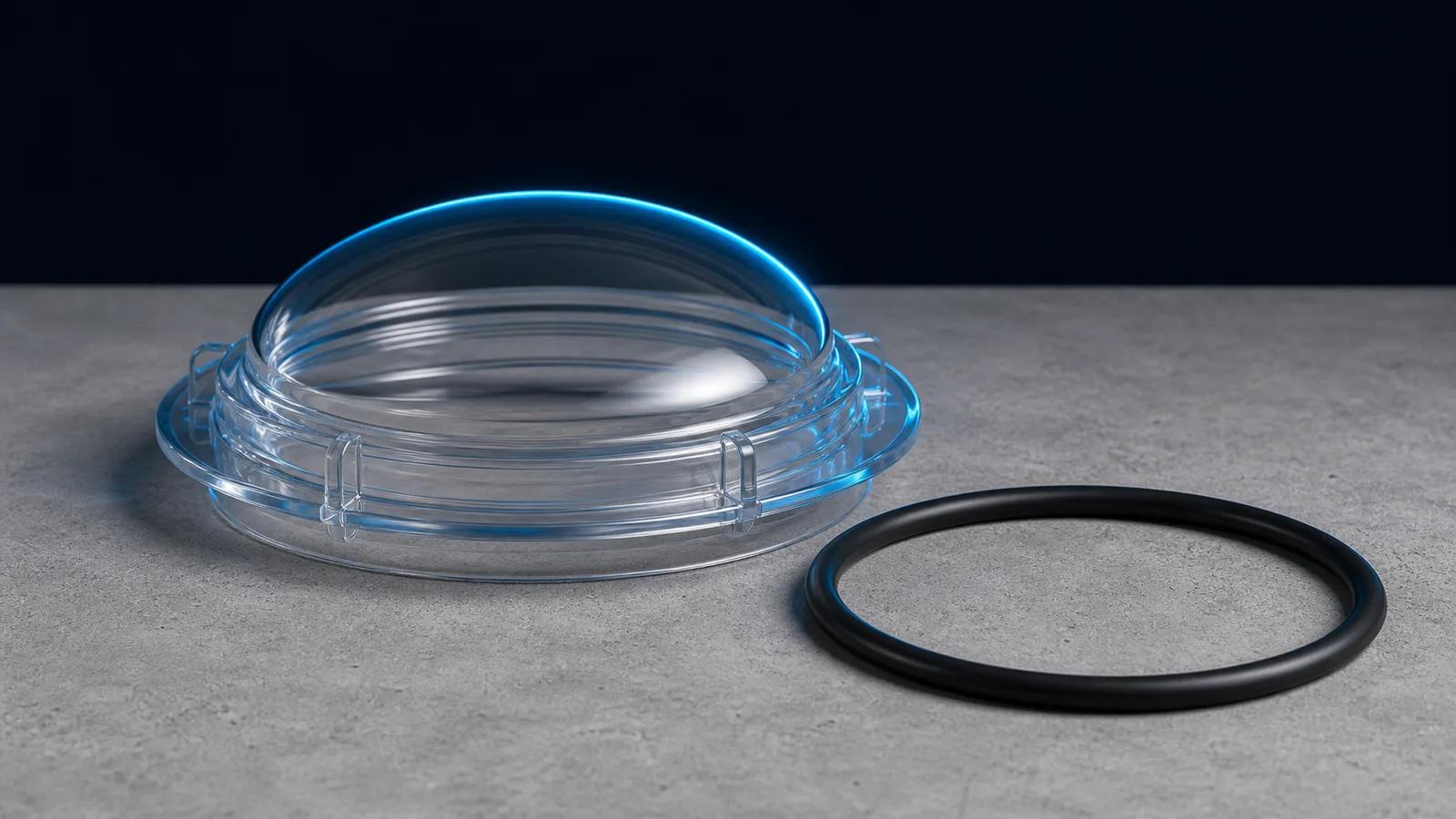

Jandy pump lid replacement

Symptoms that point at the lid

The strainer lid is the most-handled part on the pump, and it fails in predictable ways:

• Air bubbles streaming from the returns, or air churning under the lid while the pump runs, indicating the lid or its o-ring is drawing air.
• A pump that loses prime overnight but holds water fine while running.
• Crazing or stress cracks radiating from the lid's threads or lugs, usually the combined result of UV exposure and years of over-tightening.
• A lid that has hazed white and turned brittle. It may still seal today, but it will eventually let go under vacuum, and it is cheaper to replace it on your schedule than the pool owner's.

Before condemning the lid itself, clean and inspect the o-ring. A dry, flattened or nicked lid o-ring is the single most common source of suction-side air on a Jandy pump, and it is a two-minute fix when the part is on the truck.

Replacement procedure

1. Shut off power to the pump at the breaker, not just the timer or the automation schedule.
2. Open the filter's air relief valve and relieve all pressure in the system before opening anything.
3. If the pump sits below water level, close the suction and return valves, then unthread the lid.
4. Pull the basket and check it for cracks, a warped rim and a broken handle while it is in your hands.
5. Clean the o-ring groove, lubricate the new ring with a silicone-based lubricant, and seat it without twisting.
6. Thread the new lid on hand-tight only. Over-tightening distorts the sealing face and is the main reason lids crack early; a properly lubricated o-ring does the sealing, not torque.
7. Restore power, prime the pump and watch for a solid, bubble-free water level under the lid.

The POOLPOINT bundle R0448700 packages the lid, lid o-ring, strainer basket and diffuser together, replacing Jandy references R0445200, R0448700, R0448800 and R0448900. Carrying the bundle instead of loose parts means the tech is never missing the one component that turns a quick swap into a return visit.

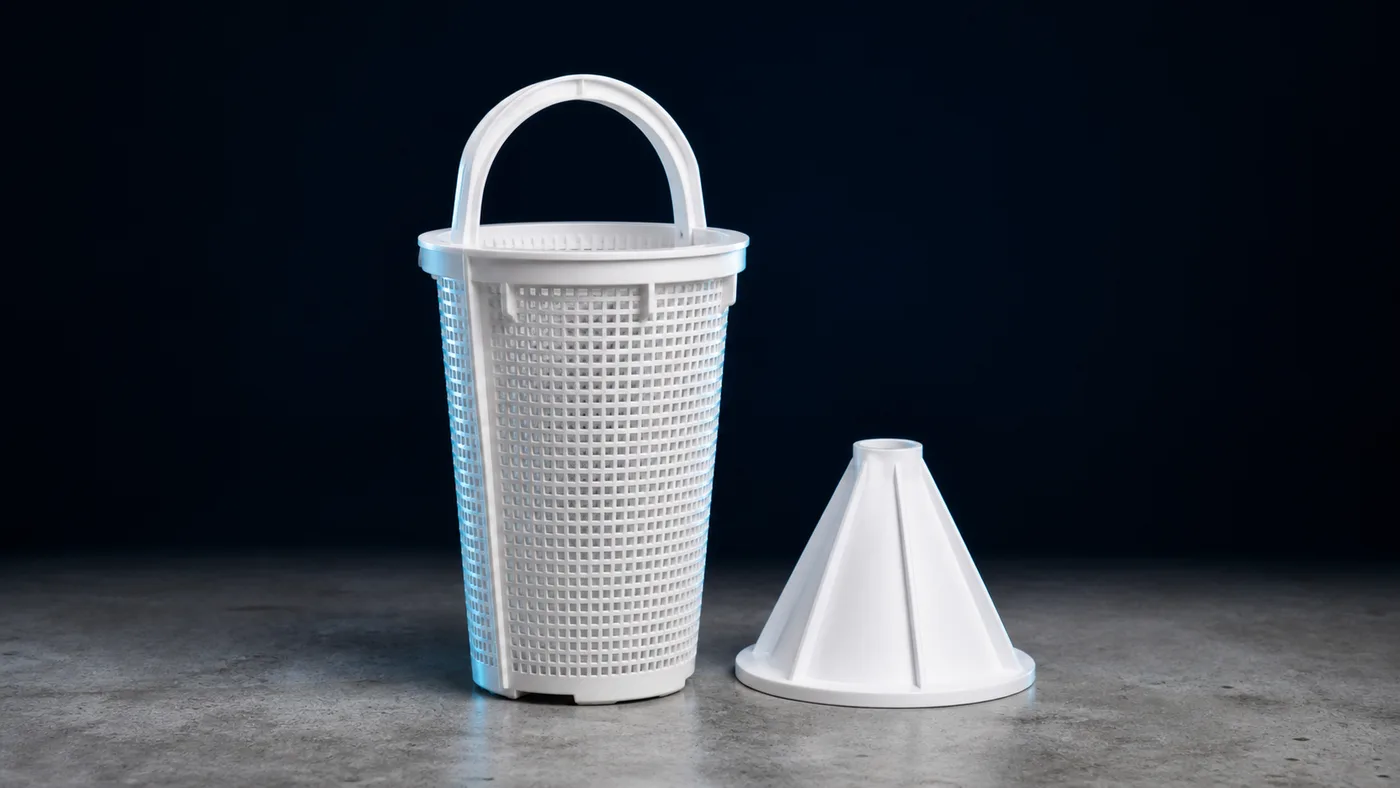

Baskets and diffusers: the rest of the wet end

A cracked strainer basket passes debris straight to the impeller. A Jandy pump that suddenly loses flow after a heavy cleanup often has nothing wrong with the motor at all — the basket split at the bottom and the impeller is packed with leaves. Baskets should be replaced at the first sign of cracking, not taped, zip-tied or glued; a repaired basket always fails at the worst time of the season.

The diffuser deserves the same attention. It is the part that lets the pump pull and hold a prime, and worn diffuser sealing surfaces show up as long priming times and weak suction even when the motor sounds perfectly healthy. Since the lid is already off during a basket swap, checking the diffuser adds one minute to the job and saves a callback that is genuinely hard to diagnose over the phone.

Filter-side consumables: air release and pressure gauge

The gauge and air release on a Jandy cartridge filter are diagnostic tools first and parts second. A gauge that reads zero with the pump running, or one that never returns to its clean baseline after a cartridge cleaning, takes away the single most useful reading on the pad — without it, nobody knows when the filter is due for service. A sticking air-release valve is worse: a filter that cannot be bled holds compressed air, which degrades filtration and becomes a safety issue every time the tank is opened.

The POOLPOINT kit R0557200 combines the air release valve and pressure gauge for Jandy cartridge filters, covering Jandy references 190058, R0557100 and R0557200. Replacing both together is good practice: they fail from the same causes — weather, vibration and chemical exposure — and the combined swap takes only minutes once the system is depressurized.

Cross-reference table

Stocking strategy for service companies

For a route with a meaningful number of Jandy pads, the practical minimum is two of each bundle per truck: two lid-and-basket bundles and two air-release-and-gauge kits. They are compact, they do not expire, and every one installed converts a diagnosis into a completed, billable repair. Warehouse stock should follow the same logic in case quantities — buying these consumables factory-direct at wholesale rather than one at a time from a supply counter is one of the easiest margin improvements available to a service company, because the install labor is already being paid for either way.

Sourcing

POOLPOINT manufactures these Jandy-compatible bundles factory-direct for US distributors, service companies and online sellers, with MOQ from 50 pcs per SKU and private label available. To check wholesale pricing on the parts above, request a quote.
