Pentair FNS Plus DE Filter Service: Clamp, Air Bleed and the Replace-or-Repair Call

The FNS Plus has been the standard vertical-grid DE filter on Pentair pads for a long time, and most of the units in the field are well past their first decade. They age gracefully, but they age in specific places: the tension control clamp that holds the tank halves together, and the internal air bleed that keeps the tank from running with an air pocket. This guide walks through servicing both, plus the honest math on when a whole replacement filter is the better call.

One clamp holds the tank together

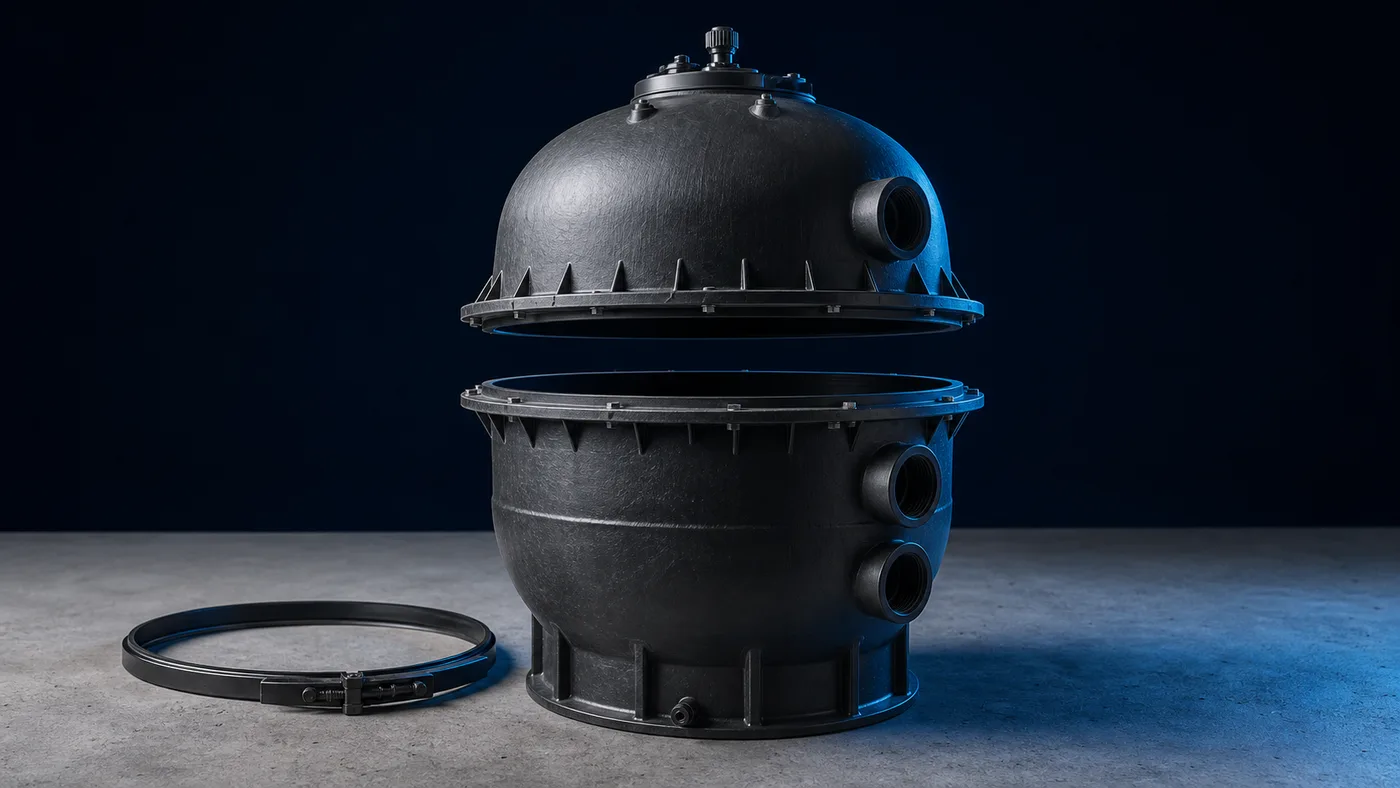

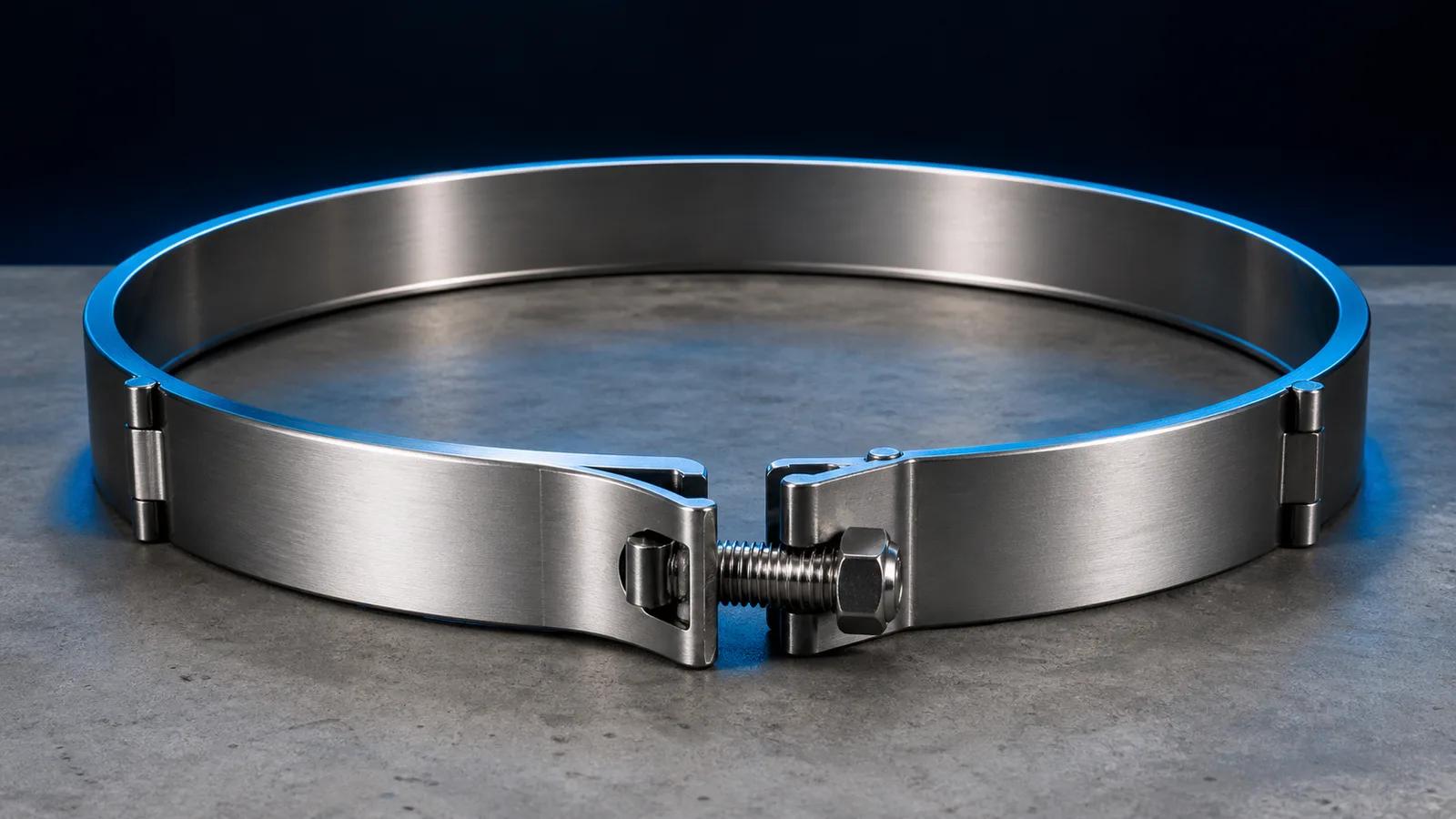

Unlike bolt-together filter designs, the FNS Plus closes with a single tension control clamp around the tank's belt line. That is a genuine service advantage — the tank opens quickly for grid cleaning — but it concentrates all of the mechanical load on one assembly, which makes clamp inspection a mandatory part of every filter service, not an optional one.

Clamp inspection checklist

Every time the tank is open, before it goes back together:

• Check the clamp band for corrosion, pitting and rust bloom, especially where the band contacts the tank flanges. Surface staining wipes off; pitting does not, and a pitted band is a replacement, not a cleanup.
• Inspect the tightening hardware for stretched, galled or corroded threads. Hardware that is hard to turn dry will be impossible to torque evenly.
• Look at the band's cross-section. Any kink, flat spot or local deformation means the clamp has been overloaded and should not be reused.
• Confirm the tank flange surfaces and the belly o-ring seat are clean, smooth and undamaged, because a good clamp cannot fix a bad sealing surface.

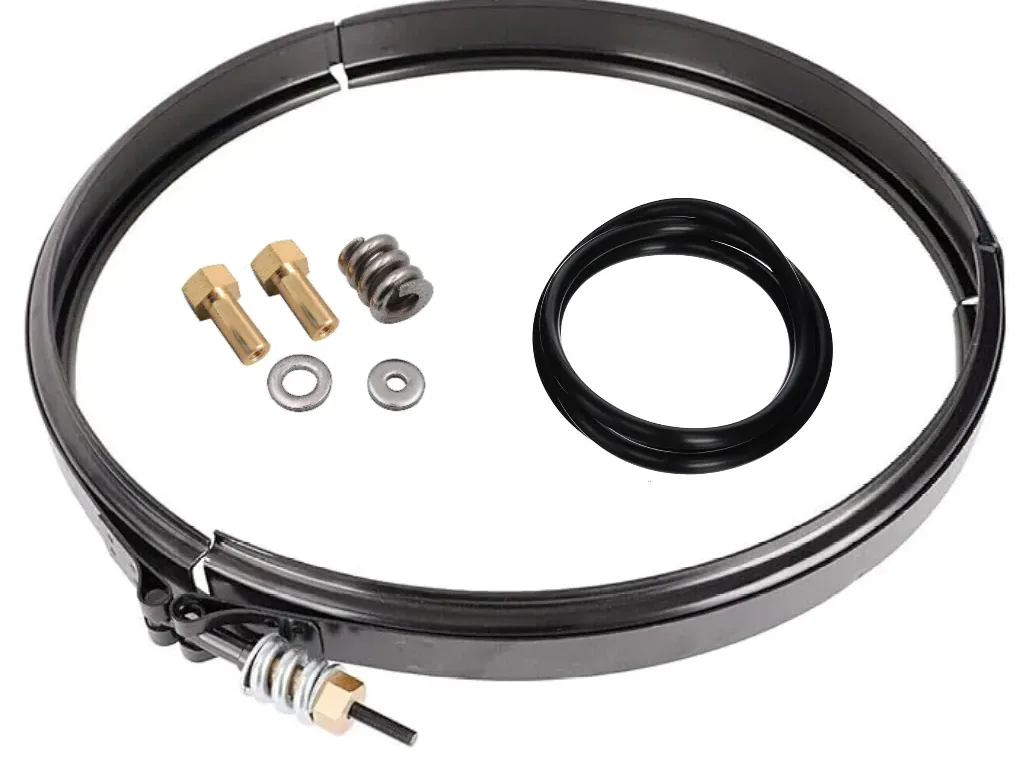

The POOLPOINT kit 190003 replaces the tension control clamp assembly on FNS Plus, Quad DE and Clean & Clear Plus filters, cross-referencing Pentair 190003, 39010200 and 53108900. Given what the clamp does, replacing a questionable one is cheap insurance.

Safe reassembly

A clamped filter tank stores real energy under pressure, so reassembly discipline matters:

1. Shut off the pump at the breaker and open the air relief valve to relieve all pressure before touching the clamp — on disassembly and again before any adjustment.
2. Clean and lightly lubricate the tank o-ring with a silicone-based lubricant, and seat the top half evenly on the bottom half.
3. Install the clamp so it sits square on both flanges all the way around, then tighten gradually while tapping around the band with a rubber mallet so it seats evenly instead of binding at one point.
4. Never adjust, tap or tighten a clamp on a pressurized tank, and never operate the filter with a clamp that will not pull fully closed.
5. After reassembly, start the pump with the air relief open, let the tank fill until water sprays steadily from the relief, close it, and inspect the belt line for weeping.

If the clamp needs to be walked around the tank or hammered to close, stop and find out why. That is either a mis-seated o-ring, a damaged flange or the wrong clamp — forcing it is how tanks get hurt.

The internal air bleed: small part, big job

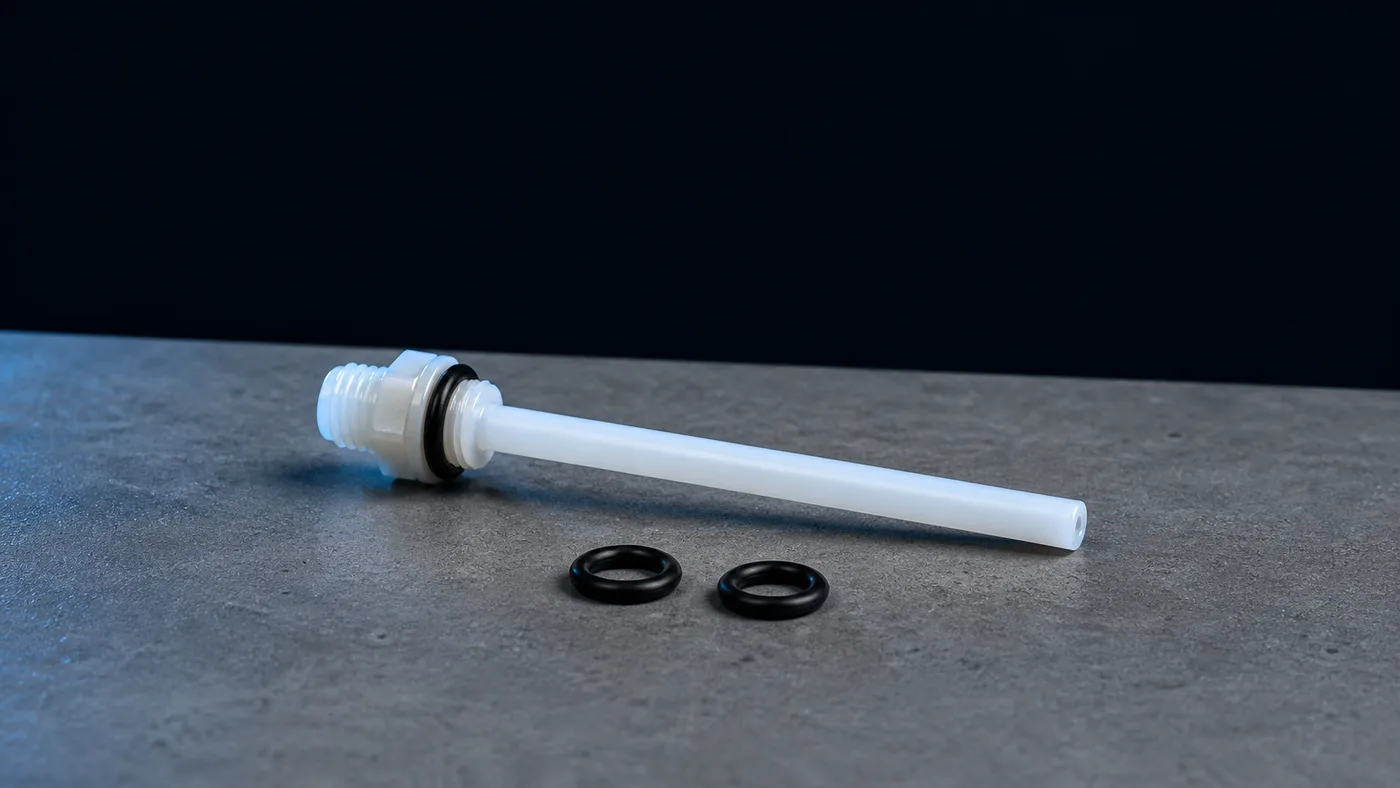

At the top of the grid assembly sits the internal air bleed, a screened assembly whose job is to pass air — but not DE or debris — out of the tank continuously while the system runs. When it clogs with DE, scale or debris, the filter runs with a permanent air pocket at the top of the tank.

The symptoms are recognizable once you know them: a burst of air from the returns every time the pump starts, a pressure gauge that behaves erratically, and grids that show a clean, uncoated band at the very top because they are standing in air instead of water. That air pocket also means part of the media surface is doing nothing, so pressure climbs faster than the service calendar says it should.

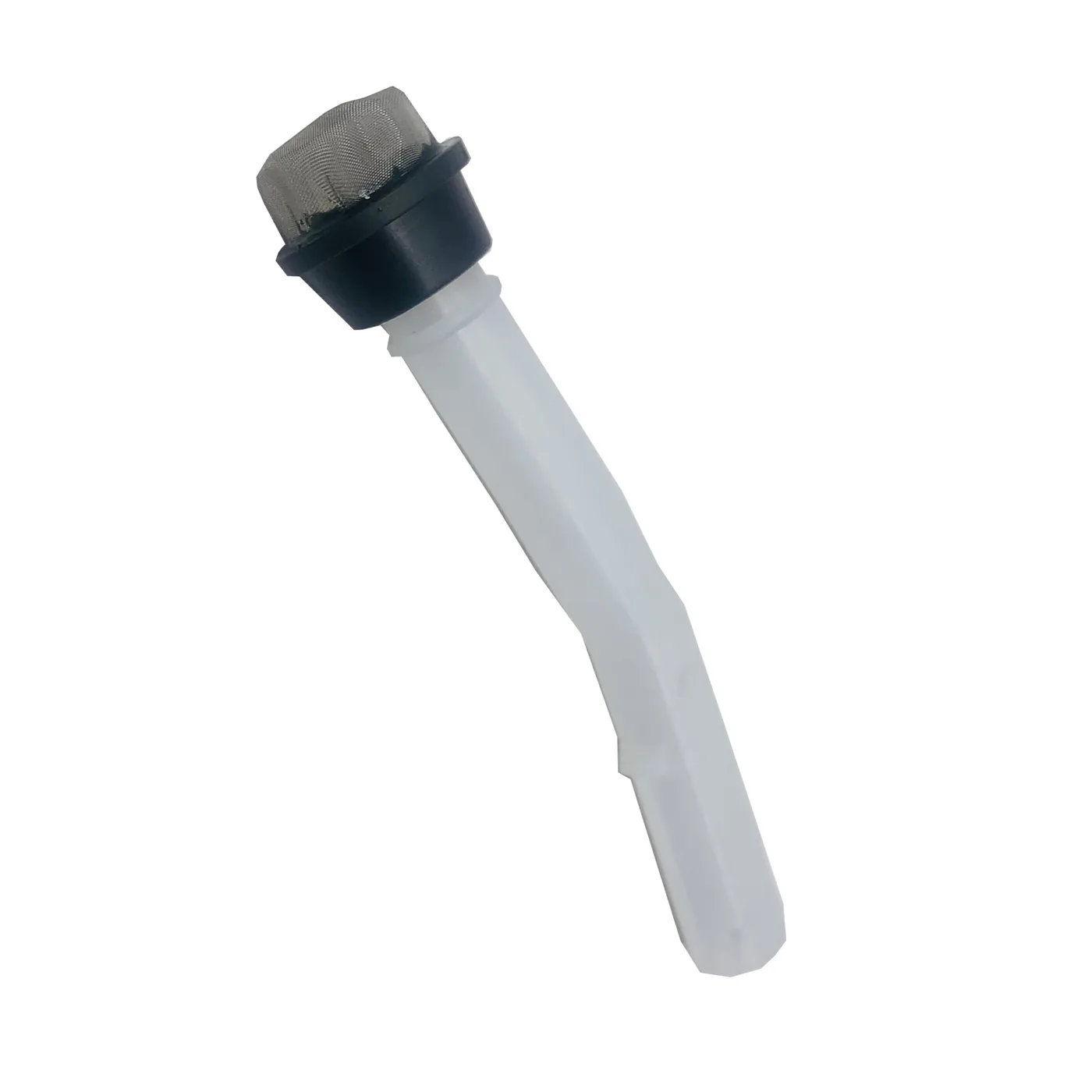

Service is simple whenever the tank is open: pull the air bleed, wash the screen thoroughly, and inspect it for tears, crushed sections or brittle plastic. A damaged screen lets DE into places it should never go. The POOLPOINT assembly 190092 replaces the internal air bleed on FNS Plus filters, covering Pentair references 190092 and W70326.

While the tank is open

The clamp and air bleed take minutes; the tank being open is the expensive part. Use it. Hose each grid down and inspect the fabric for tears, holes and worn corners — DE returning to the pool is almost always a torn grid or a cracked manifold, and finding it now beats a callback later. Check the manifold for cracks around the ports, confirm the standpipe o-ring is sound, and look at the bottom of the tank for settled DE that indicates a bypassing grid. After reassembly, precoat the grids with fresh DE immediately; running bare grids even briefly drives fine debris into the fabric and shortens their life.

Repair or replace: when a whole filter makes sense

There is a point where parts stop being the answer. Chronic sealing problems at the belt line after the o-ring and clamp have both been replaced usually mean flange damage. A tank with impact damage, deep chemical crazing or bulging is done, full stop — pressure vessels do not get benefit of the doubt. And on a very old unit, when grids, manifold, o-ring and clamp all need attention in the same season, the parts-plus-labor total lands close to the cost of a complete filter that resets the clock on every component at once.

For those cases POOLPOINT supplies the complete FNSP36-EC, a 36 sq ft FNS Plus DE filter assembly cross-referencing Pentair 180007, 59023500, EC-180007 and FNSP36-EC. For service companies, quoting a replacement filter alongside a long repair list is often the more honest offer, and frequently the one the customer takes.
