Every salt-chlorinated pool eventually runs without its cell: the cell goes out for acid cleaning, gets sent in under warranty, dies mid-season while a replacement ships, or comes off the pad for winter storage. The question is what fills the hole in the plumbing while it is gone. A bypass cell — usually called a dummy cell — is the purpose-built answer, and it is a part every salt-pool service company and parts distributor should carry.
What a dummy cell is

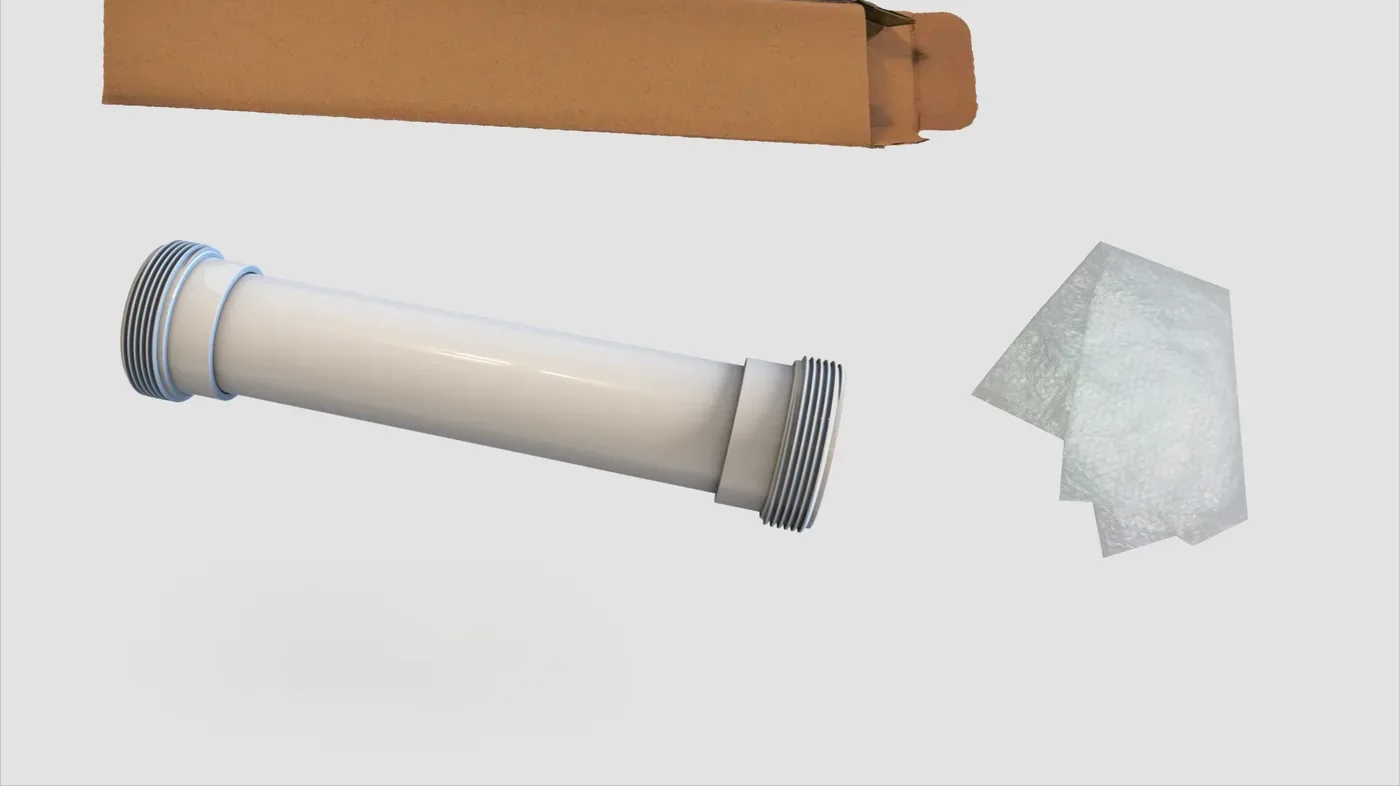

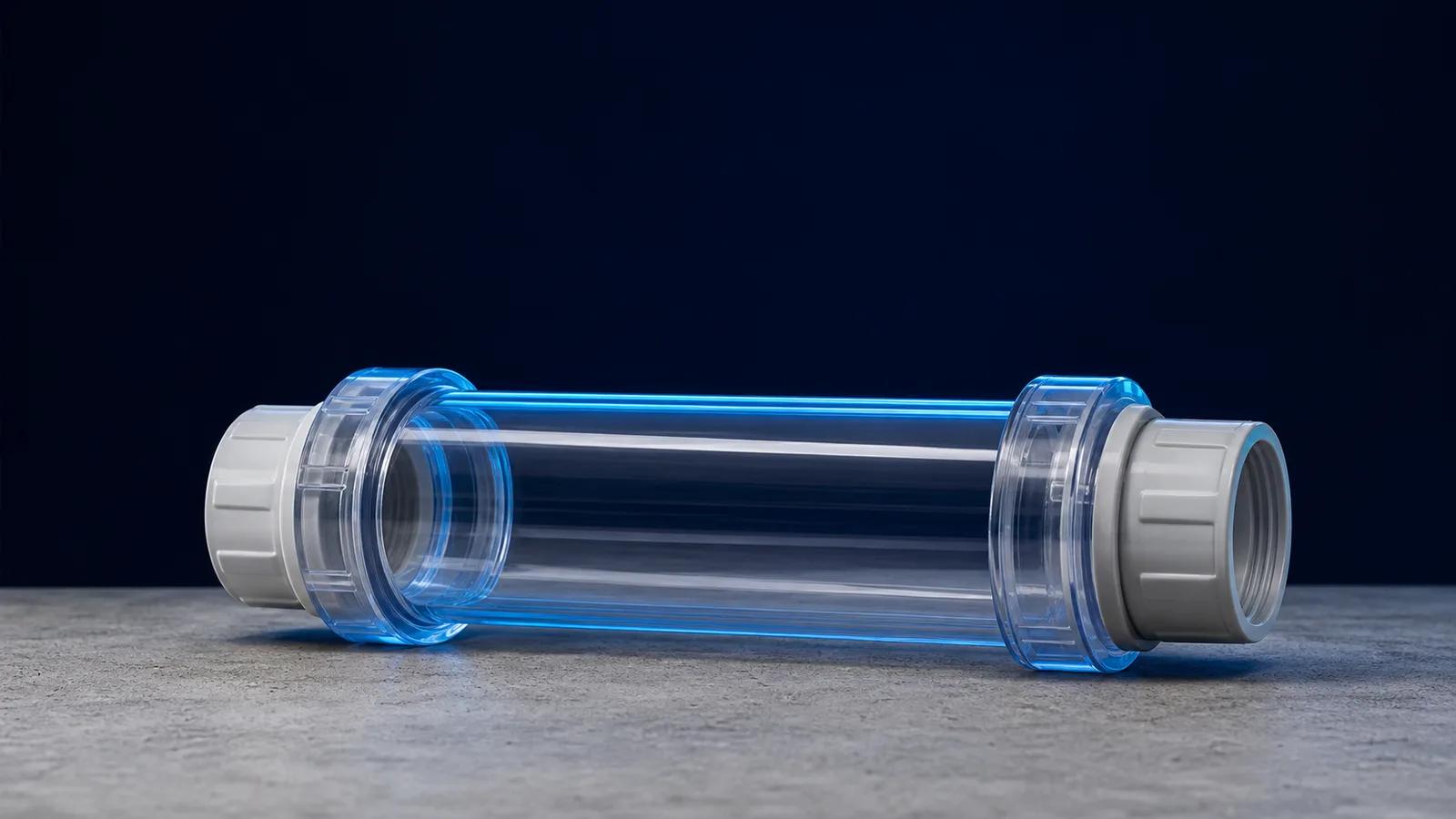

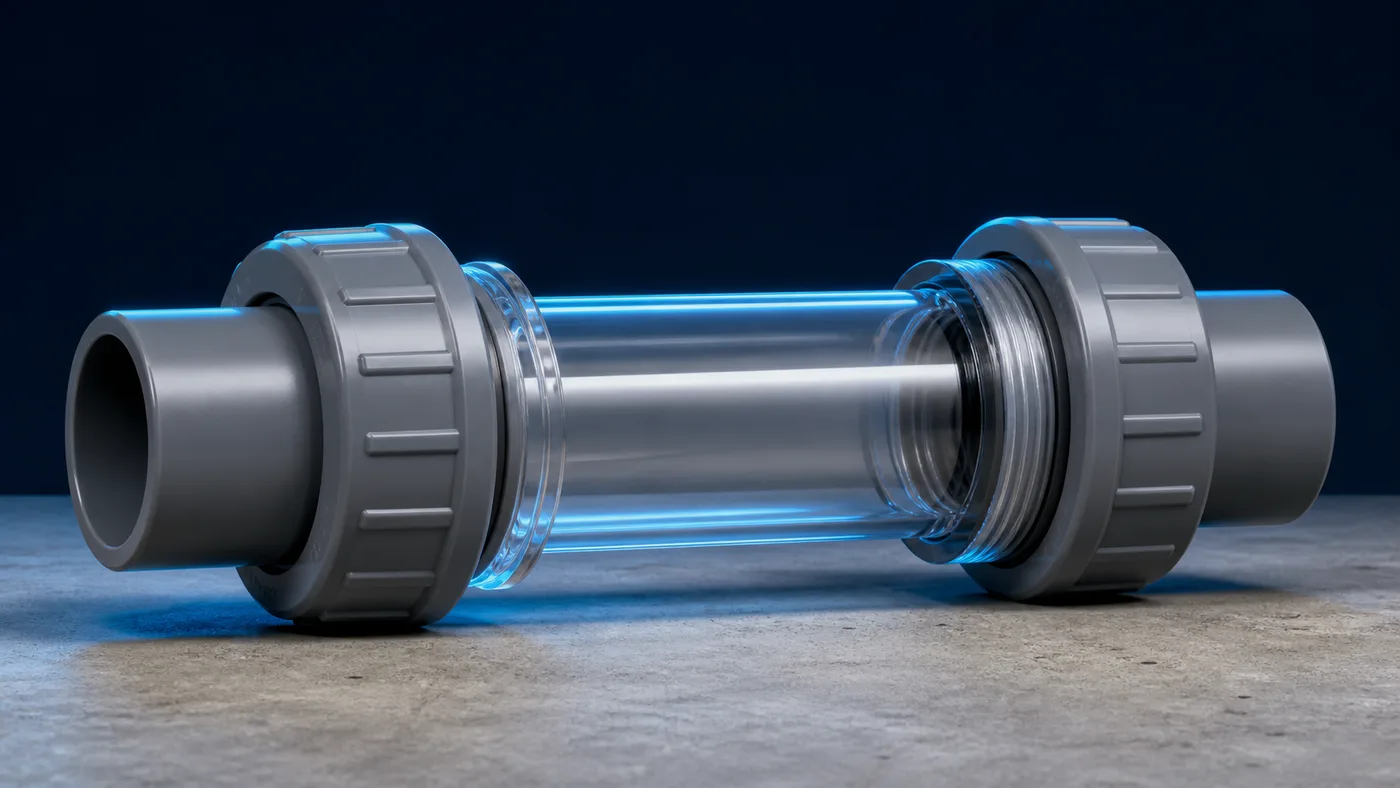

A dummy cell is a pipe section molded to the same length and thread pattern as the electrolytic cell it stands in for. It contains no electrode plates and no electronics; it simply completes the plumbing run with the same unions and O-ring seals the real cell uses, so water flows through the pad exactly as before. Nothing connects to the chlorinator's cell cord, which stays capped or tied off while the dummy is installed.
POOLPOINT manufactures an aftermarket bypass cell compatible with the Hayward TurboCell line — T-CELL-3, T-CELL-5, T-CELL-9, and T-CELL-15 — the cells used across Hayward's salt chlorination systems. Because those cells share their union interface, one dummy cell covers the family, which is exactly what makes it an easy stocking decision.
Why the pool keeps running fine without the cell
A salt cell is a generator, not a filter: the pump, filter, and heater neither know nor care whether the cell in line is producing chlorine. With a dummy cell installed, circulation, filtration, and heating run normally. The only thing missing is chlorine production, so the pool goes on manual chlorination — liquid chlorine or tabs dosed to hold sanitizer levels — until the real cell returns. The control unit should be switched off or set to zero output so it is not trying to drive a cell that is not there; the specifics vary by model, so follow the chlorinator manual.
That decoupling is the whole value of the part. A dead cell no longer means a dead pool or an emergency plumbing job; it means a five-minute swap and a jug of chlorine.
The winterizing case
In climates that close pools, the manufacturer-recommended practice is to remove the salt cell for the winter and store it indoors. Freezing water and electrode plates do not mix, and winter is also a convenient time to inspect and clean the cell. Removing the cell, though, leaves a gap in the plumbing on pads that are blown out and left assembled rather than fully broken down.
A dummy cell closes that gap cleanly:
- Shut off power to the pump and the chlorinator at the breaker, and relieve pressure at the filter's air relief before opening any union.
- Unscrew the cell unions, remove the cell, and drain it.
- Install the dummy cell in its place with the O-rings seated and unions hand-tight, then cap and secure the cell cord.
- Store the real cell indoors, dry, out of sunlight.
- In spring, reverse the swap and the system is back on salt in minutes.
The pad stays sealed for winterizing and blow-out, nothing is left open to collect debris or insects, and the fragile, expensive component spends the winter on a shelf instead of in the ice.
Servicing and diagnosing with the pool still running
The same part earns its keep all season:
- Acid-washing a scaled cell. Cells need periodic cleaning in areas with hard water. With a dummy in the line, the pool circulates and stays swimmable during the soak instead of the tech rushing the job at the pad.
- Warranty and replacement gaps. When a cell goes back to the manufacturer or a replacement is on backorder, the dummy keeps the system whole for however long that takes.
- Troubleshooting. When a chlorinator throws flow or cell errors, pulling the cell for bench inspection is a standard step. The dummy lets the tech leave the customer's circulation running rather than shutting the pool down.
- Rentals and seasonal properties. Pools that switch between salt and manual chlorination seasonally can do so without touching hard plumbing.
Why a bypass cell beats a hard-plumbed bypass
Some installers plumb a permanent bypass loop with valves around the cell. That works, but the comparison favors the dummy cell for most pads:
- No plumbing work. The dummy threads into the existing unions in minutes with no cutting, gluing, or added fittings — and no chance of a mis-glued joint leaking later.
- No added leak points or valves to fail. A bypass loop adds tees and valves that each become a future service item. The dummy uses the seals already in the system.
- Nothing to set wrong. A valve bypass left half-open sends unmeasured flow past the cell and confuses output; a dummy cell is binary — the cell is either in the line or it is not.
- Fits pads with no room. Many equipment pads have no straight pipe available for a bypass loop. The dummy needs zero extra space.
- Cost. One molded part against tees, valves, pipe, and labor is not a close call.
The hard-plumbed loop still makes sense on large commercial systems where cells are swapped constantly. For residential and light commercial service, the dummy cell does the same job with less to go wrong.
Fit and installation notes
Match the dummy to the cell family, not the pool. The POOLPOINT bypass cell covers the Hayward TurboCell unions used by the T-CELL-3, T-CELL-5, T-CELL-9, and T-CELL-15; verify the union threads and O-rings on other systems before substituting. Install with the same care as a real cell: clean union threads, seat the O-rings, lubricate them with pool-safe silicone lubricant, and tighten hand-tight only. Restart the pump, bleed air at the filter, and check the unions for weeps under full flow.
Cross-reference
| OEM number | POOLPOINT part | Notes |
|---|---|---|
Hayward T-CELL-3 |
POOLPOINT salt cell bypass / dummy cell | Stands in for the cell during winterizing or service; no electrode, no wiring |
Hayward T-CELL-5 |
POOLPOINT salt cell bypass / dummy cell | Same union interface across the TurboCell family |
Hayward T-CELL-9 |
POOLPOINT salt cell bypass / dummy cell | Pool runs on manual chlorination while installed |
Hayward T-CELL-15 |
POOLPOINT salt cell bypass / dummy cell | Remove and store the real cell indoors over winter |
Sourcing
POOLPOINT manufactures this TurboCell-compatible bypass cell factory direct for US distributors, service companies, and online sellers, with MOQ from 50 pcs and private label available. It is a low-cost, high-margin add-on for anyone selling salt cells or winterizing supplies — request a quote for wholesale pricing.
