Hayward Star-Clear Plus Maintenance: Knobs, Air Relief and Cartridge Care

On a service route, the Hayward Star-Clear Plus is about as low-drama as cartridge filters get — no multiport valve, no media changes, one cartridge under one head. The failures techs actually see cluster around three points: the locking knobs that hold the head down, the internal air relief tube that keeps the tank purging itself, and the cartridge and tank when age finally catches up. Here is how to handle each one, plus a seasonal checklist that keeps these filters off the callback list.

Cracked and seized locking knobs

The Star-Clear Plus head is held down by threaded locking knobs, and those knobs are the part of the filter that gets handled every single cleaning. Plastic knobs live outdoors in UV and get reefed on by whoever opens the filter, so cracking is a matter of when, not if. Typical presentations:

• A knob that spins without tightening — the threads or the insert have stripped.

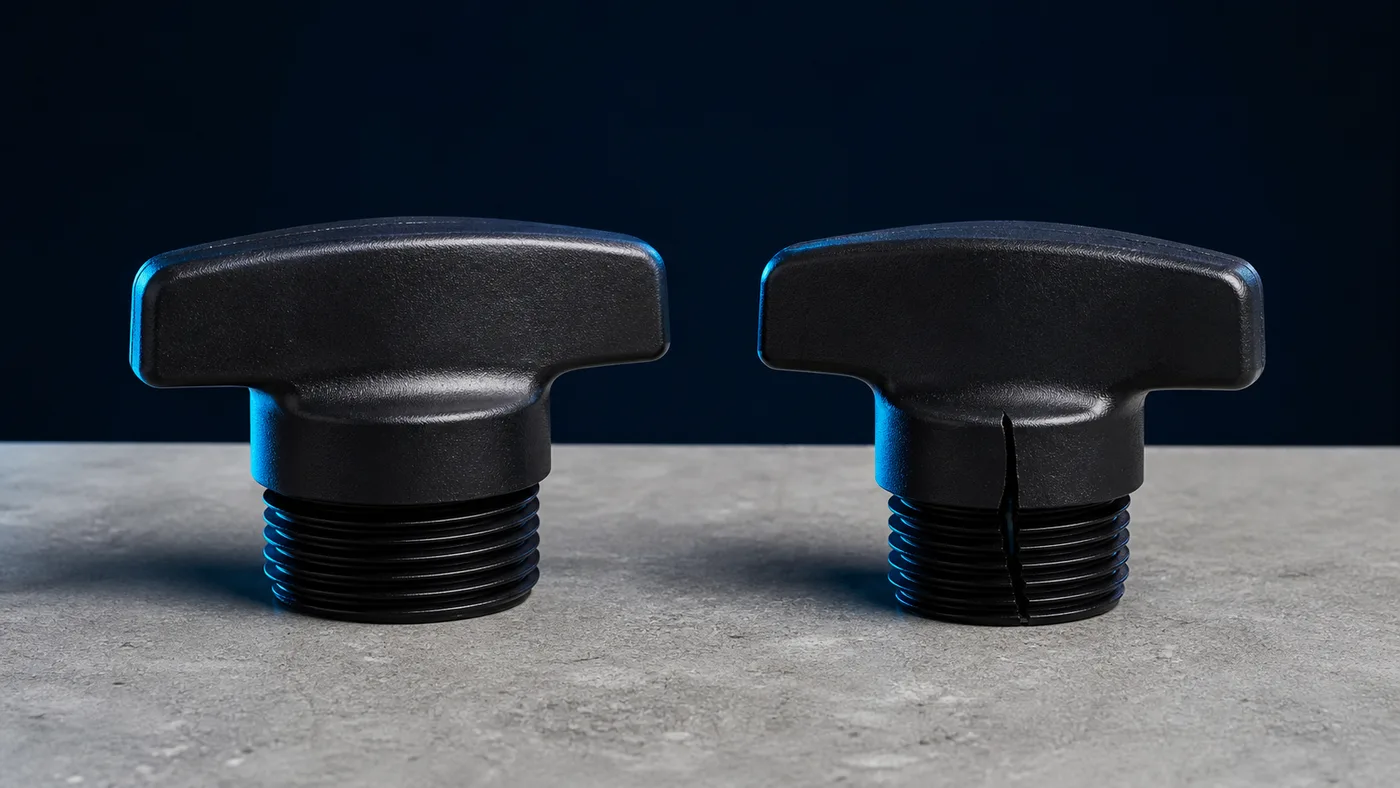

• Hairline cracks radiating from the center of the knob. These knobs are holding down a pressurized head; retire them at the first crack rather than waiting for a failure under pressure.
• Knobs seized by scale or sunbaked plastic that have to be broken to get the filter open.

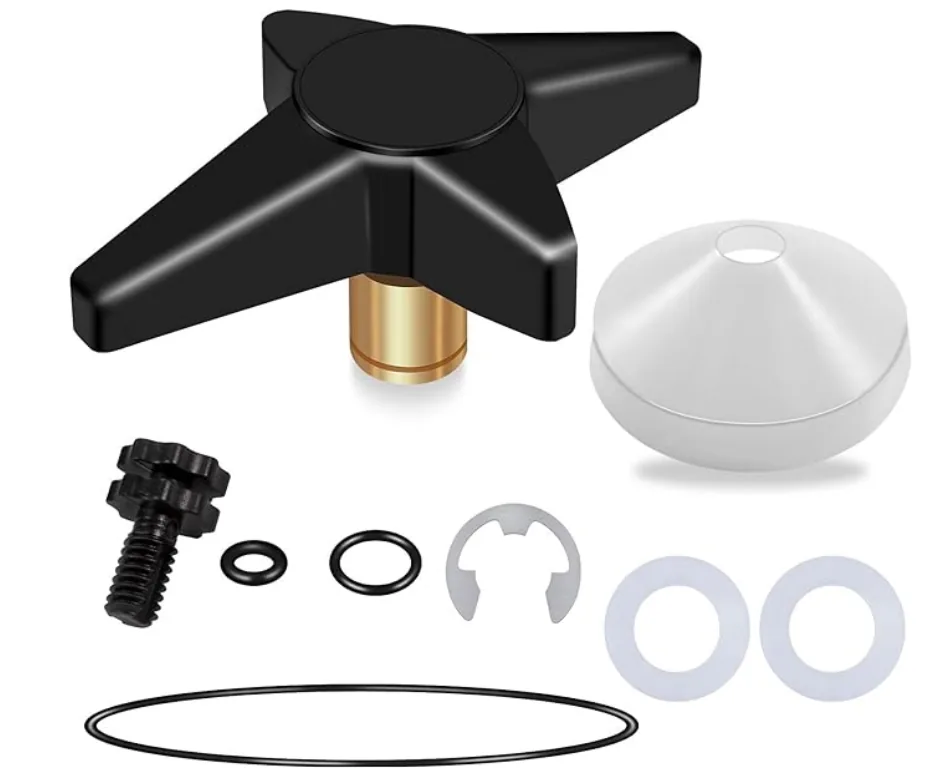

Replacement is trivial — the point is to have knobs on the truck. A cracked knob discovered mid-cleaning otherwise means leaving a filter you cannot safely close. POOLPOINT's CX900G locking knob and filter knob kit is the aftermarket replacement covering the Hayward knob part numbers used across Star-Clear Plus models (see the cross-reference table below).

Two habits extend knob life: hand-tighten only, since tools crush the threads and crack the domes, and lubricate the head O-ring with pool-safe silicone lubricant at every cleaning so the knobs do not have to fight a dry gasket to seal the head.

The air relief tube nobody cleans

Inside the tank, an automatic air relief tube runs up toward the top of the filter. Its job is to let the air that accumulates at the top of the tank bleed back out through the system so the tank stays full of water. The tube's small openings clog with fine debris, and a clogged tube shows up as:

• A filter that needs the manual air relief cracked constantly to keep full flow.
• Air spitting from return jets long after start-up.
• A gauge that behaves erratically because the head space is air, not water.

Trapped air is not just an efficiency problem. An air pocket at the top of a filter tank is compressed gas, and it is the reason filter lids blow off when someone opens a clamp or knob without bleeding pressure. A working auto air relief keeps that pocket small.

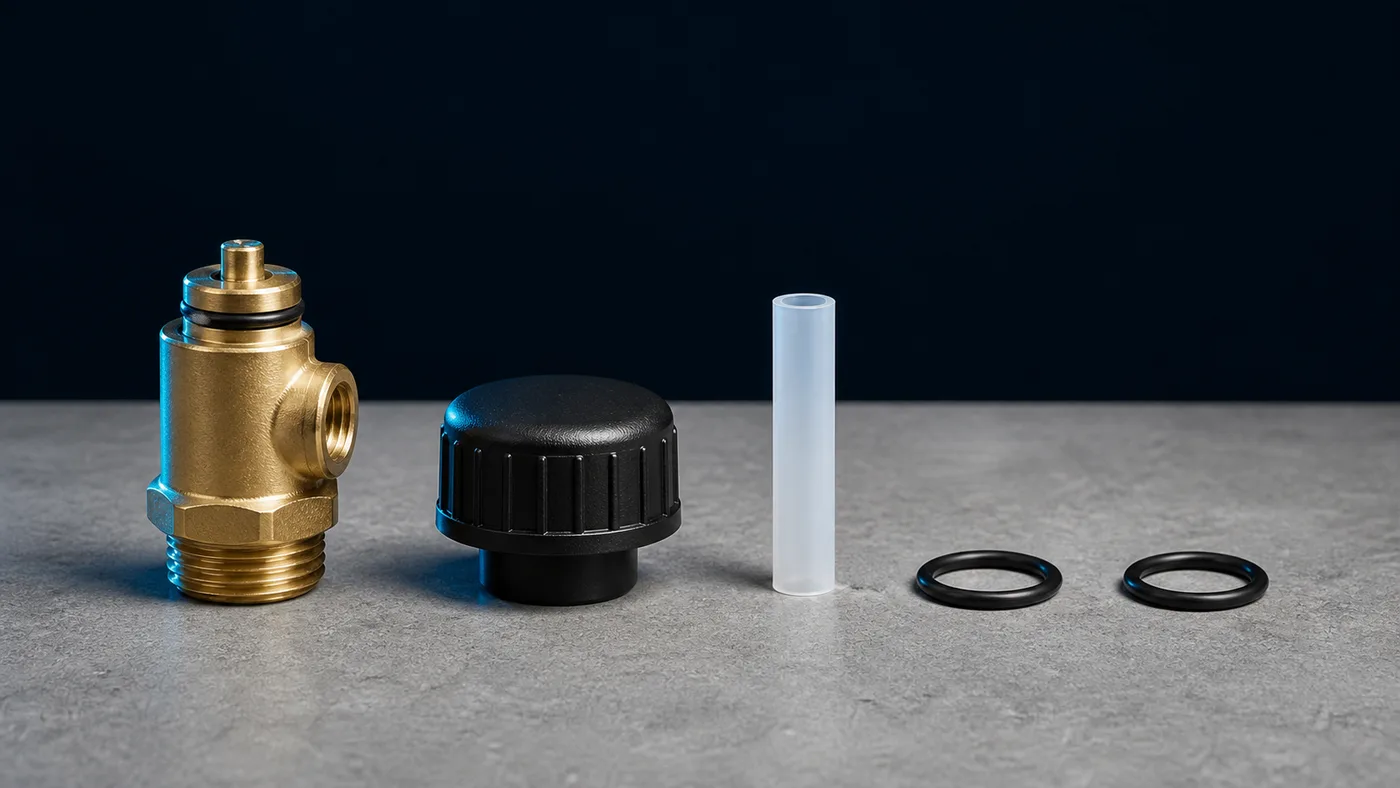

Cleaning the tube is a two-minute job during every cartridge cleaning: pull it, rinse it, blow it clear, and check that its screen or slots are intact. Once the tube is cracked, crushed, or its openings have worn oversized, replace it — POOLPOINT's CX1100Z4 auto air relief tube fits both Star-Clear Plus and Star-Clear II filters.

Cartridge care that actually extends life

The cartridge itself is the consumable, but poor cleaning habits burn cartridges early:

• Rinse with a garden hose, not a pressure washer. High pressure drives dirt into the media and tears pleats.
• Work top to bottom along the pleats, not across them, so debris washes out of the folds instead of deeper in.
• Degrease periodically. Oils and lotions blind the fabric; a hose rinse will not remove them. Soak in a cartridge cleaner per its label when pressure rises quickly after a rinse.
• Never acid-wash before degreasing. Acid sets oils permanently into the media.
• Inspect the bands, end caps, and pleats. Broken bands, crushed end caps, or pleats that stay matted after cleaning mean the cartridge is done regardless of how it looks otherwise.

A cartridge that goes back in clean, on a schedule, protects the pump and keeps run times short. One that gets hosed off only when the gauge forces the issue will fail seasons early.

When the whole filter is the right repair

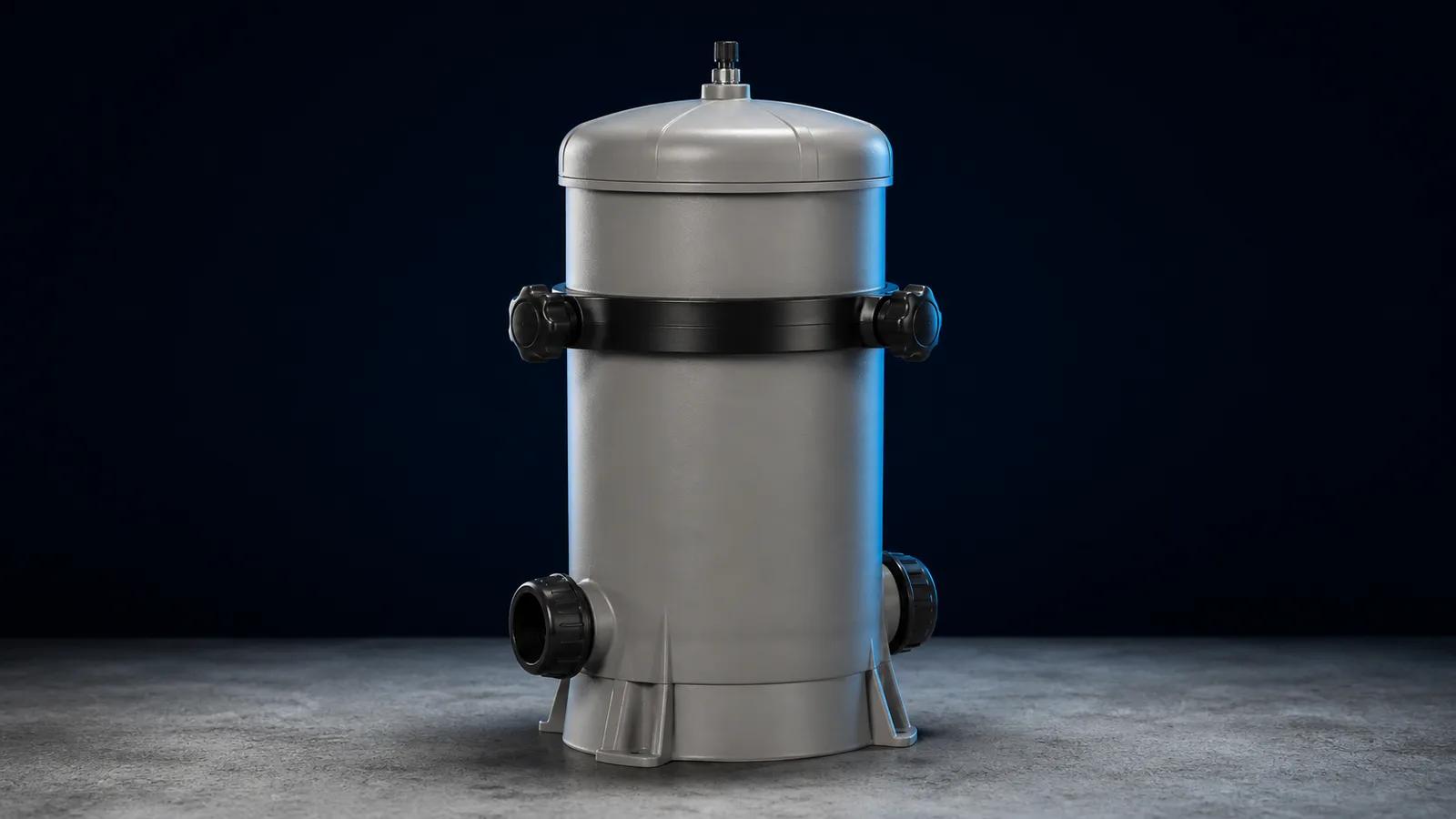

Some tanks are not worth another round of parts: spider cracks around molded bosses, a chalky UV-eaten shell, threads that no longer hold a knob, or repair costs stacking up against replacement. For those jobs, POOLPOINT supplies the C1200 Plus-style cartridge filter assembly — a 120 sq ft cartridge filter with 1.5–2 inch connections that replaces the Hayward assemblies listed below. For distributors, stocking a complete assembly alongside the wear parts closes the sale either way the service call goes.

Seasonal service checklist

Run this list at opening, mid-season, and closing:

1. Shut off the pump at the breaker and open the manual air relief until pressure reads zero before touching the knobs. Never open a filter under pressure.
2. Remove the head, pull the cartridge, and hose it clean along the pleats; degrease if pressure has been climbing fast.
3. Pull and rinse the auto air relief tube; replace with CX1100Z4 if damaged.
4. Inspect every locking knob for cracks and stripped threads; swap from the CX900G kit as needed.
5. Clean and lubricate the head O-ring with silicone lubricant; replace it if flattened or nicked.
6. Reassemble hand-tight, restart the pump, bleed air until water sprays steadily from the relief, and record the clean starting pressure on the tank as the baseline for the season.

Cross-reference: OEM numbers to POOLPOINT parts

Sourcing

POOLPOINT manufactures these Star-Clear-compatible parts factory direct for US distributors, service companies, and online sellers. MOQ starts at 50 pcs per SKU and private label programs are available — request a quote for wholesale pricing on CX900G, CX1100Z4, and C1200.
