Hayward Super Pump Rebuild Guide: Diagnosing and Replacing Worn Wet-End Parts

Walk almost any residential equipment pad in the United States and you will find a Hayward Super Pump on it. The platform has stayed mechanically consistent for decades, which means most flow and leak complaints can be solved with a short list of wet-end parts instead of a whole new pump. This guide covers how to diagnose the components that actually wear, a full rebuild sequence, and how to decide when replacement is the smarter call.

Why the wet end fails before the motor

A centrifugal pool pump is really two assemblies joined at a seal plate: an electric motor and a wet end. The motor is a sealed electrical component that, treated reasonably, runs for years. The wet end — strainer housing, basket, diffuser, impeller, unions and the shaft seal — lives in chlorinated water, direct sunlight and constant vibration for the entire season. Plastic embrittles under UV, o-rings flatten and crack, gaskets take a compression set, and unbalanced water chemistry attacks the seal faces. Treat these components as consumables, because that is exactly how they behave in the field.

The practical consequence for service companies is simple: a truck stocked with the right Super Pump wet-end parts closes most calls in one visit. The cross-reference table at the end of this article maps common Hayward OEM numbers to their POOLPOINT equivalents.

Diagnosing worn wet-end parts

Strainer housing and basket

Pull the lid and inspect the basket in direct light. A cracked or sagging basket lets leaves and pebbles through to the impeller, which is where most "clogged impeller" service calls actually begin. Then examine the housing itself. Hairline cracks around the lid threads or drain plugs pull air on the suction side, showing up as bubbles under the lid and a pump that struggles to hold prime. A housing that weeps only when the pump is off usually has a suction-side crack rather than a pressure-side one.

Diffuser

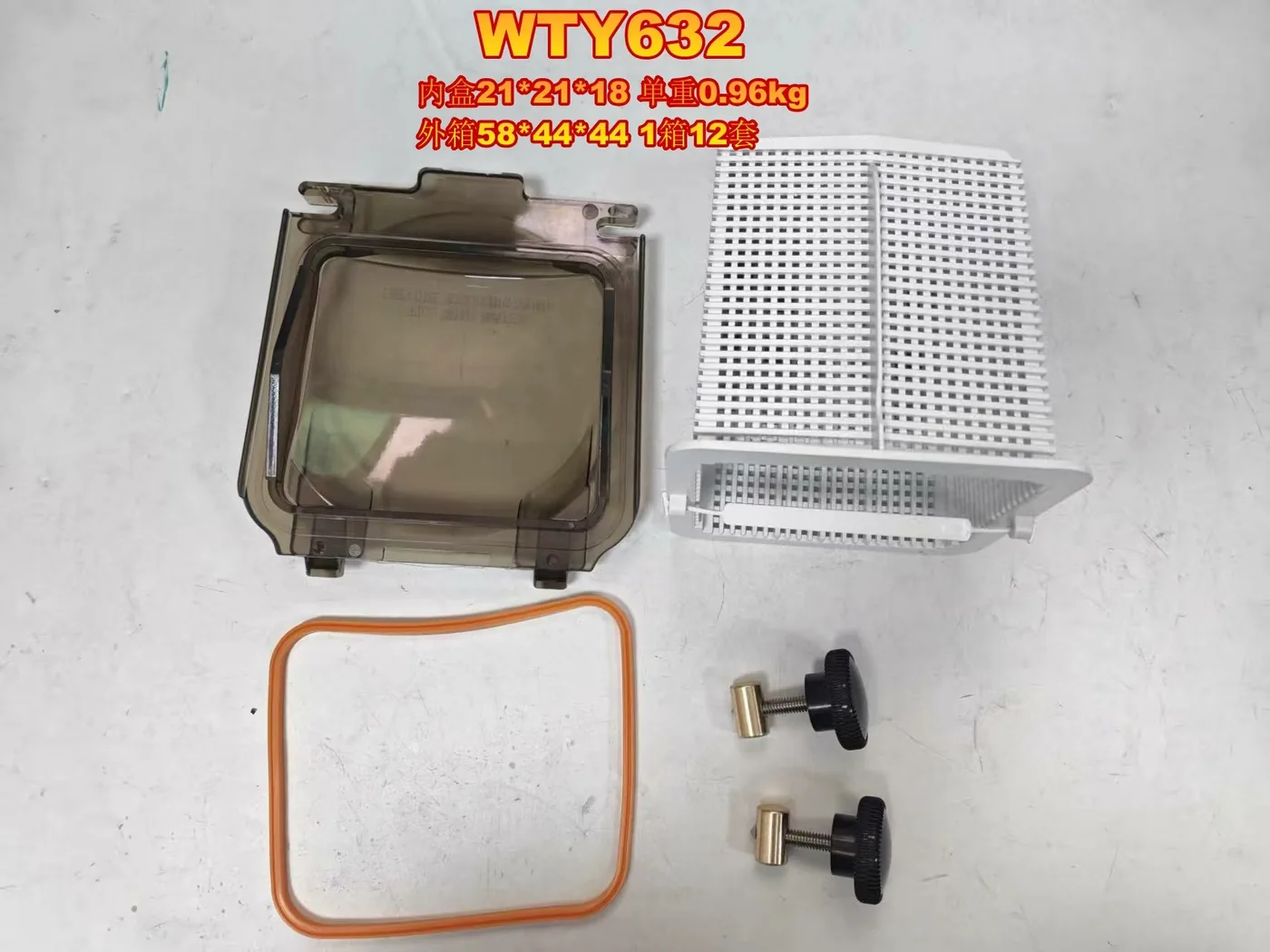

The diffuser shrouds the impeller and does the real work of priming. A worn diffuser, or one missing its gasket, produces long prime times and noticeably weaker flow even though the motor sounds normal. Look for wear where the impeller eye rides and for warping left behind by a past dry-run event. The SPX1600D bundle covers the diffuser together with the strainer housing and basket, which is the sensible combination when heat or UV has aged all three parts together.

Unions and connection seals

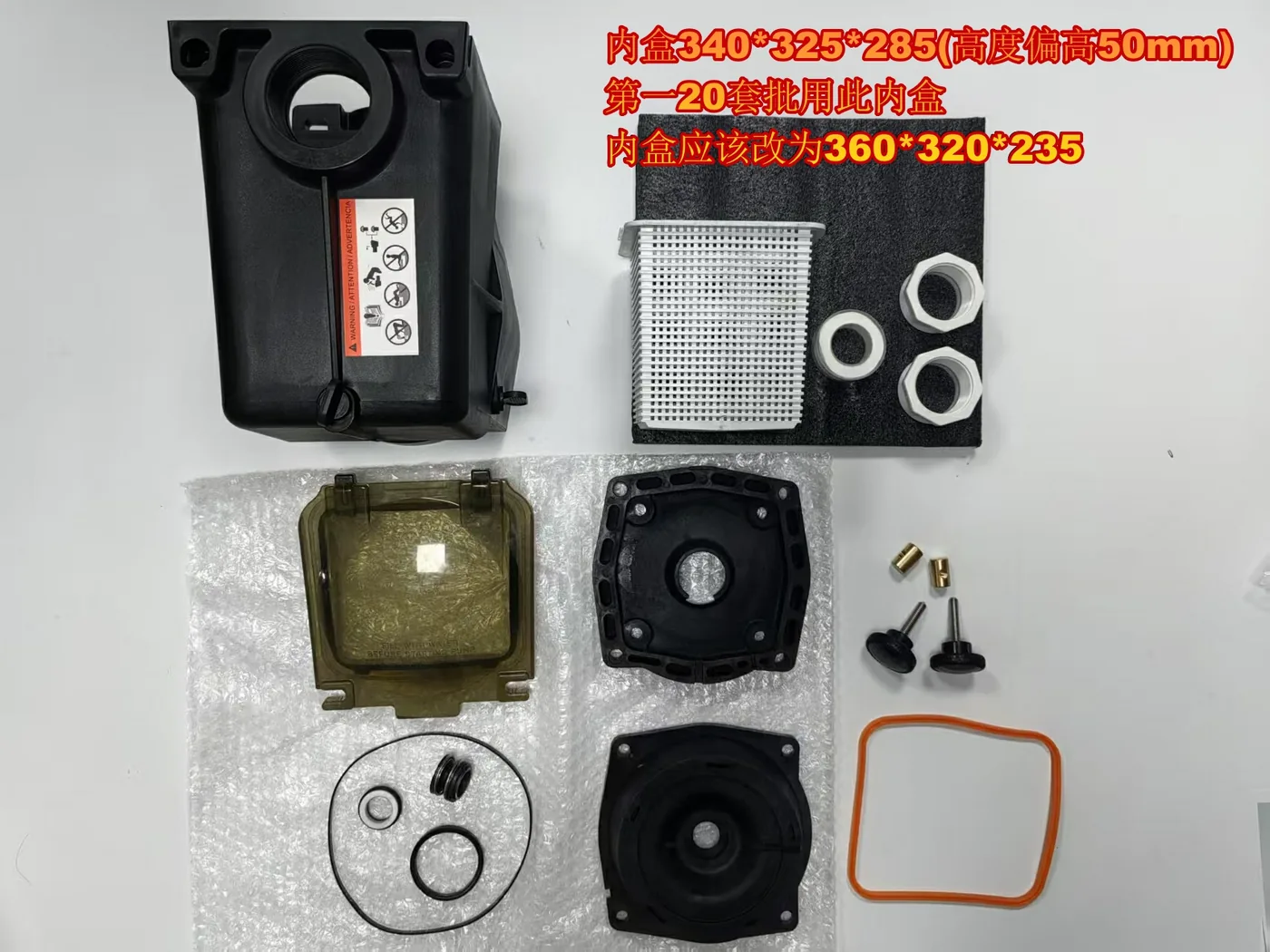

Weeping at the threaded connections, crusty white deposits, or unions that refuse to seal without heroic tightening all point to dead o-rings and worn union components. Chronic overtightening also cracks union nuts, and a cracked nut cannot be sealed at any torque. The SPX1620AA union and seal replacement bundle refreshes these connection points in a single line item.

Shaft seal

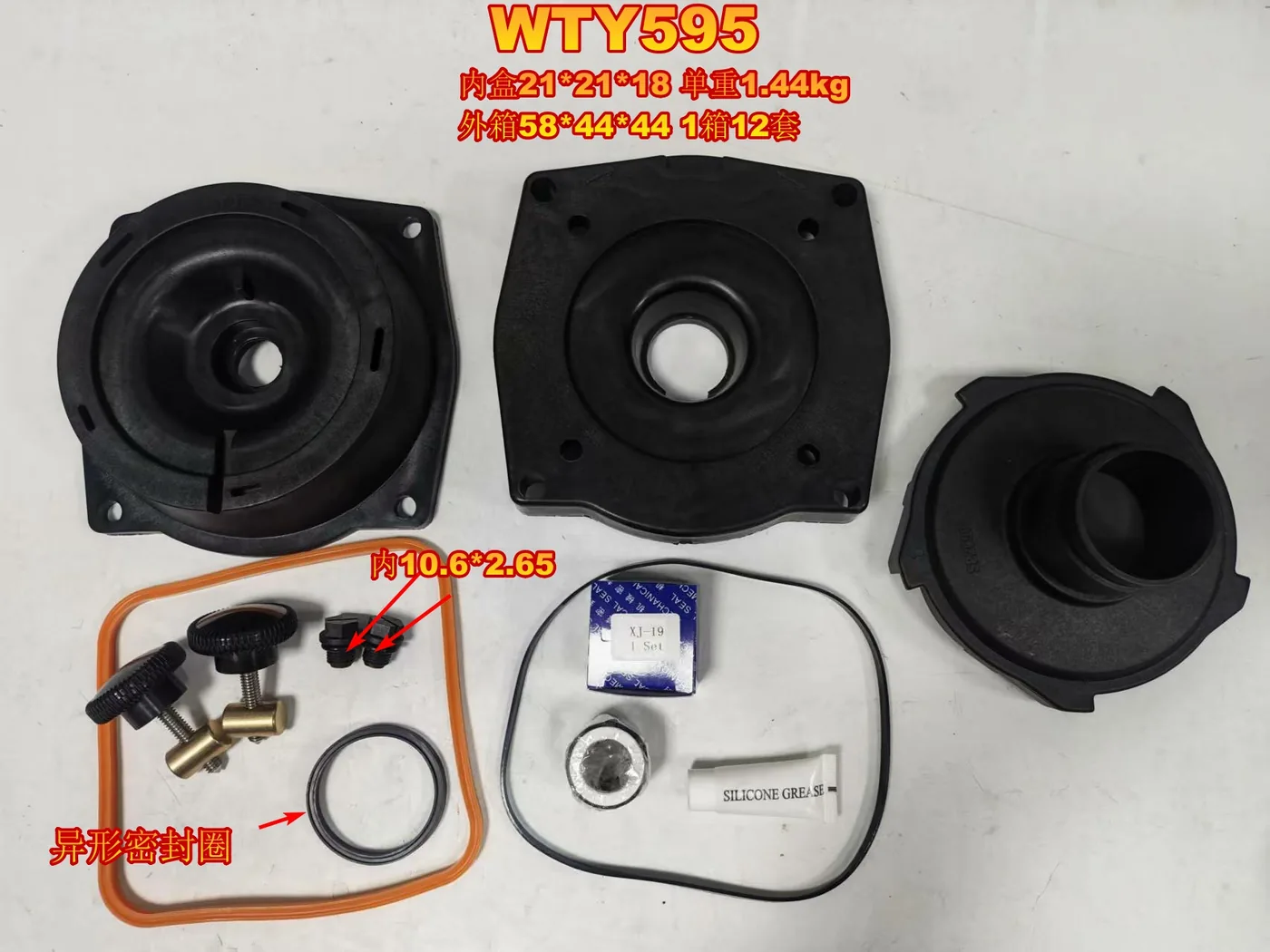

Look under the pump where the motor meets the wet end. Fresh drips, a white scale trail, or rust tracks running down the motor face mean the mechanical shaft seal is passing water. Left alone, that water finds the front motor bearing, and a bearing growl follows within weeks. The SPX2600B seal kit serves the applications listed in the table below. One rule is absolute: a shaft seal is never reusable once it has run. If you open the pump, install a new one.

Full rebuild walkthrough

1. Shut off power at the breaker — not just the timer — and verify the pump cannot start. Relieve pressure at the filter's air relief before opening anything on the pad.
2. If the pump sits below water level, close the suction and return valves. Remove the drain plugs and let the wet end empty.
3. Disconnect the unions and take the pump to a bench if you can. Rebuilds go faster and cleaner off the pad.

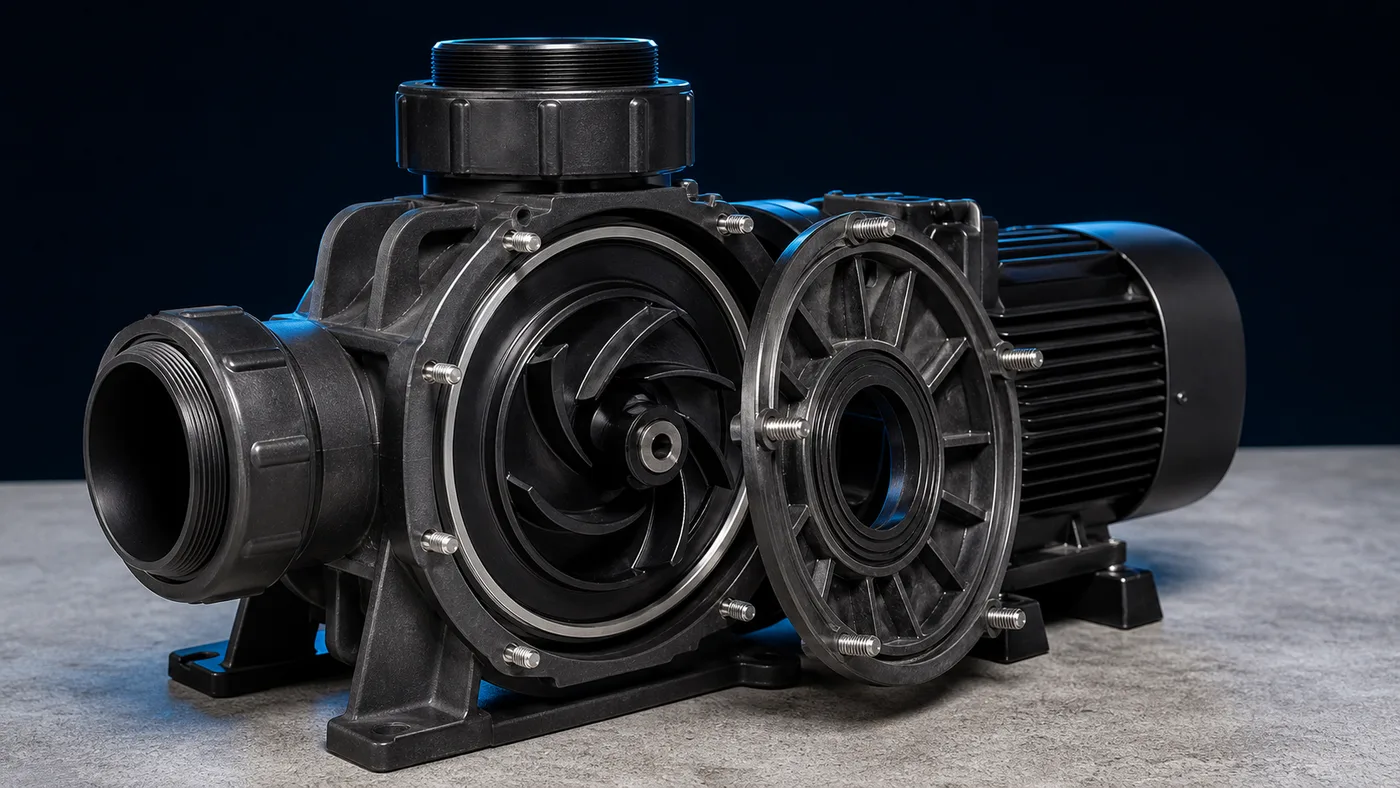

4. Separate the motor and seal plate assembly from the housing. Remove the diffuser and inspect it along with its gasket.

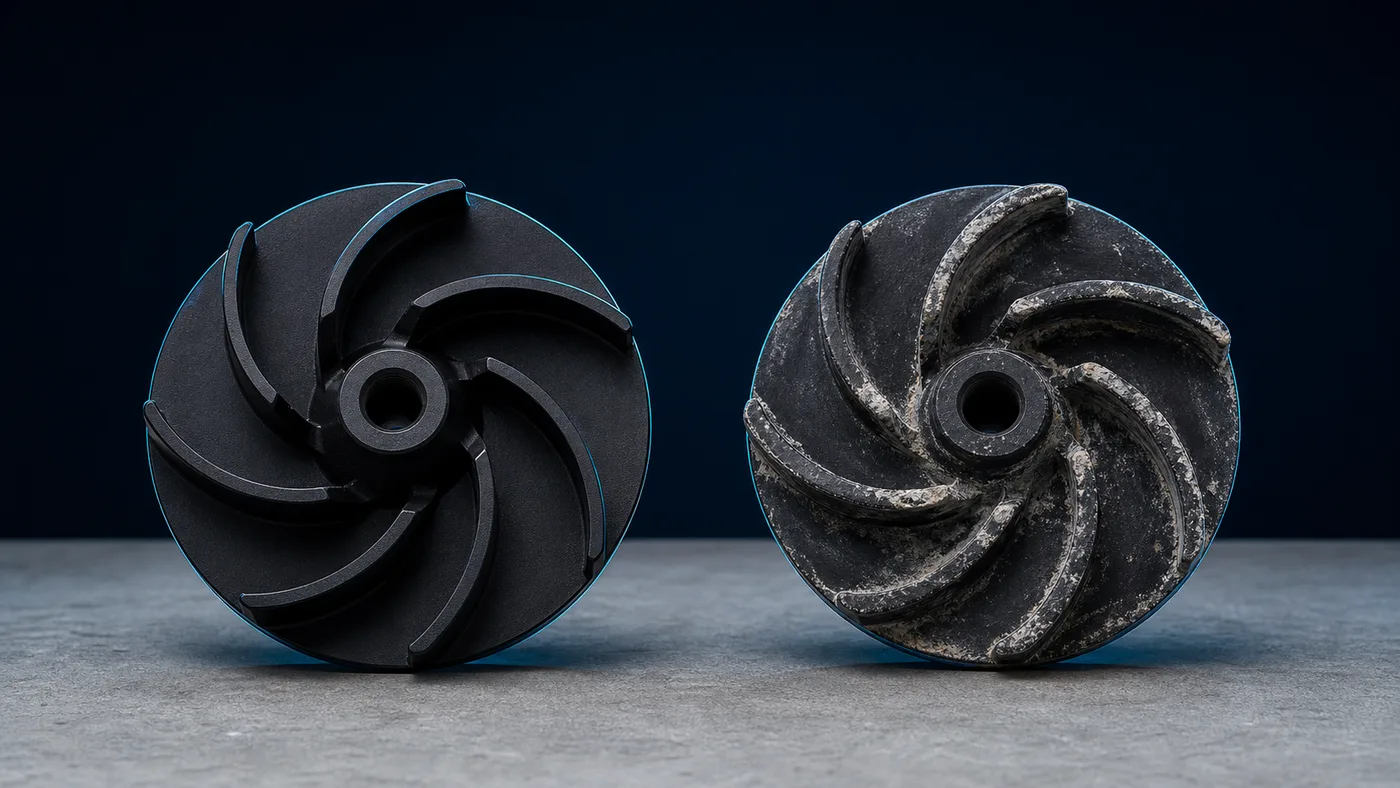

5. Hold the motor shaft at the rear per the motor's design and unthread the impeller. Inspect the vanes for erosion and the hub threads for damage.
6. Replace the shaft seal: press the stationary half squarely into the seal plate and fit the rotating half on the impeller hub. Never touch the polished faces with bare fingers, since skin oils shorten seal life. Use water or a seal lubricant intended for pool service, never petroleum grease.
7. Fit new gaskets and o-rings throughout, lightly coated with a pool-grade silicone lubricant. A rebuild that reuses old rubber usually leaks again within a season.
8. Reassemble, reconnect the unions hand-tight plus a small nudge, fill the strainer pot with water, restore power and watch the pump prime. Bleed air at the filter and inspect every joint while the system is under pressure.

Rebuild or replace the pump?

Rebuild when the motor runs quietly, the shaft spins freely without bearing noise, and the housing is structurally sound. A wet-end refresh with a new diffuser, basket, seals and unions returns the pump to proper flow for a fraction of replacement cost, and it keeps the plumbing and electrical work untouched.

Replace when the motor bearings are gone and the wet end is also shot, when the shaft is scored badly enough to chew through seals repeatedly, or when the owner has already decided to move to a variable-speed platform. For rental fleets, HOA accounts and service routes full of standardized pads, the math usually favors rebuilding, because parts stock stays interchangeable across the whole portfolio.

Super Pump cross-reference table

The table below maps Hayward OEM references from our application data to the POOLPOINT aftermarket part that covers them.

Sourcing

POOLPOINT manufactures these Super Pump-compatible parts factory direct for US distributors, pool service companies and online sellers. MOQ starts at 50 pieces per SKU, and private label programs are available. Request a quote for wholesale pricing on any part in the table above.
