Multiport Valve Troubleshooting: Spider Gaskets, Diverters and Backwash-Line Leaks

Every sand and DE filter lives or dies by one component: the multiport valve that routes water between filter, backwash, rinse, waste, recirculate and closed. When water shows up where it should not — trickling out the backwash line, seeping between positions — the valve is telling you its internal seals are done. This article works through the three classic multiport failures on Pentair-pattern valves and the parts that fix each one.

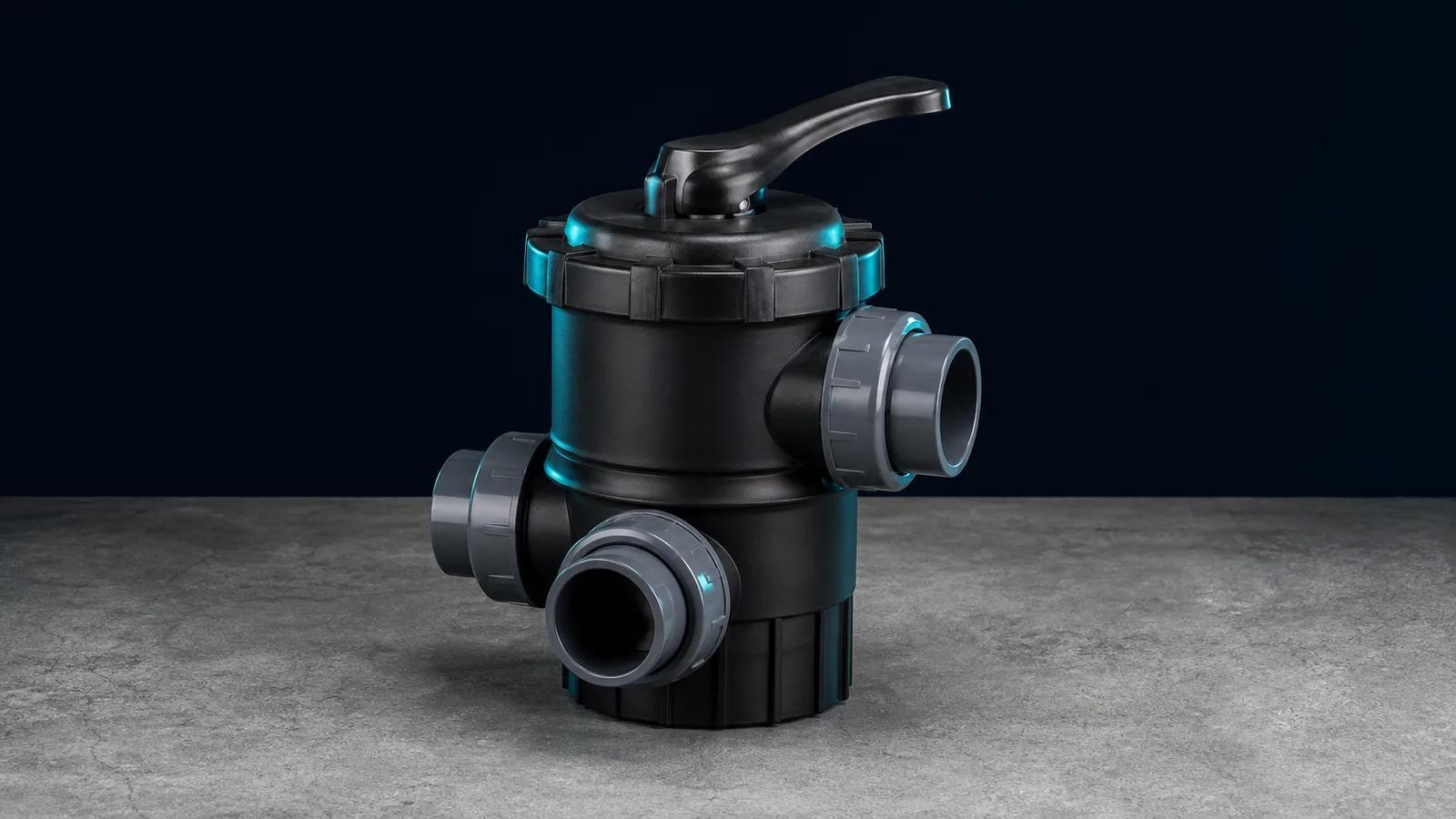

How a multiport valve actually seals

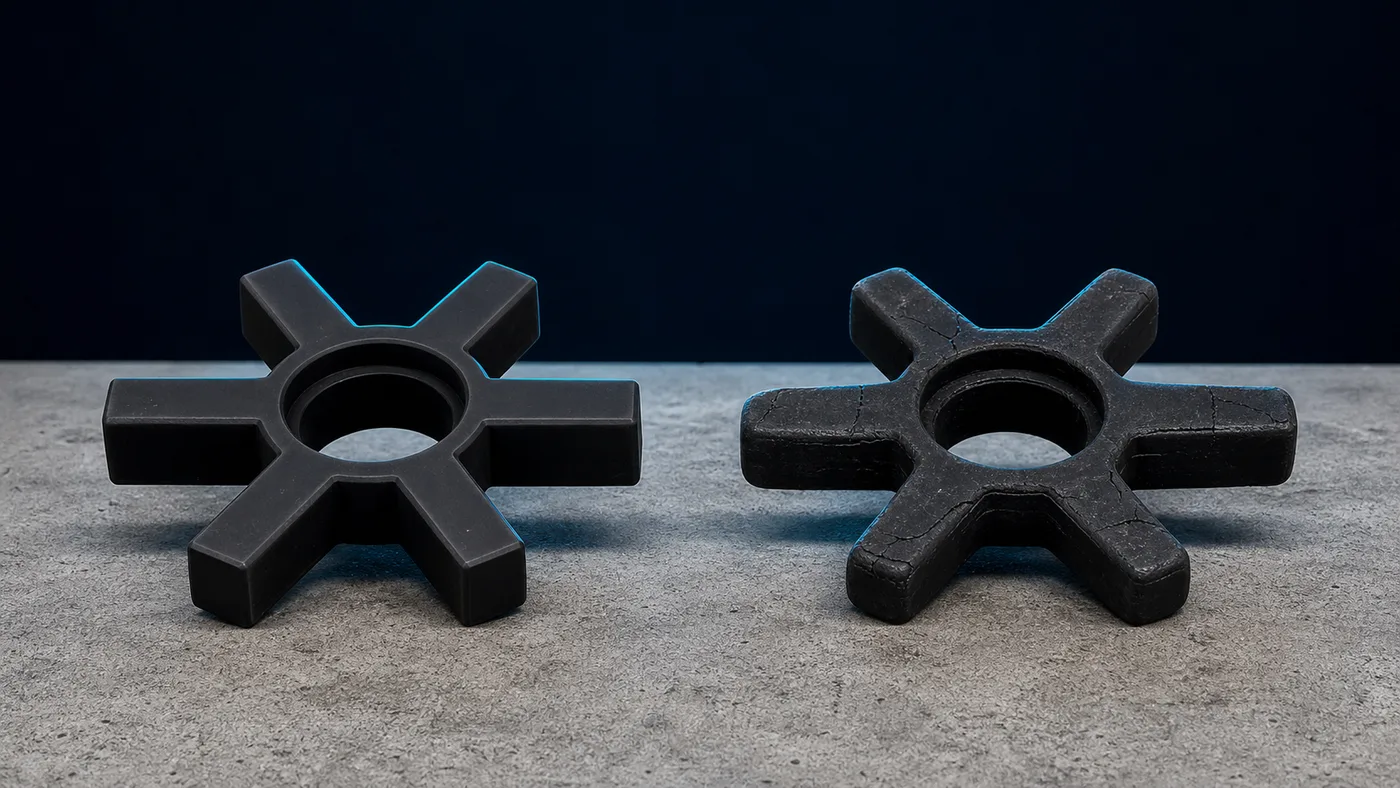

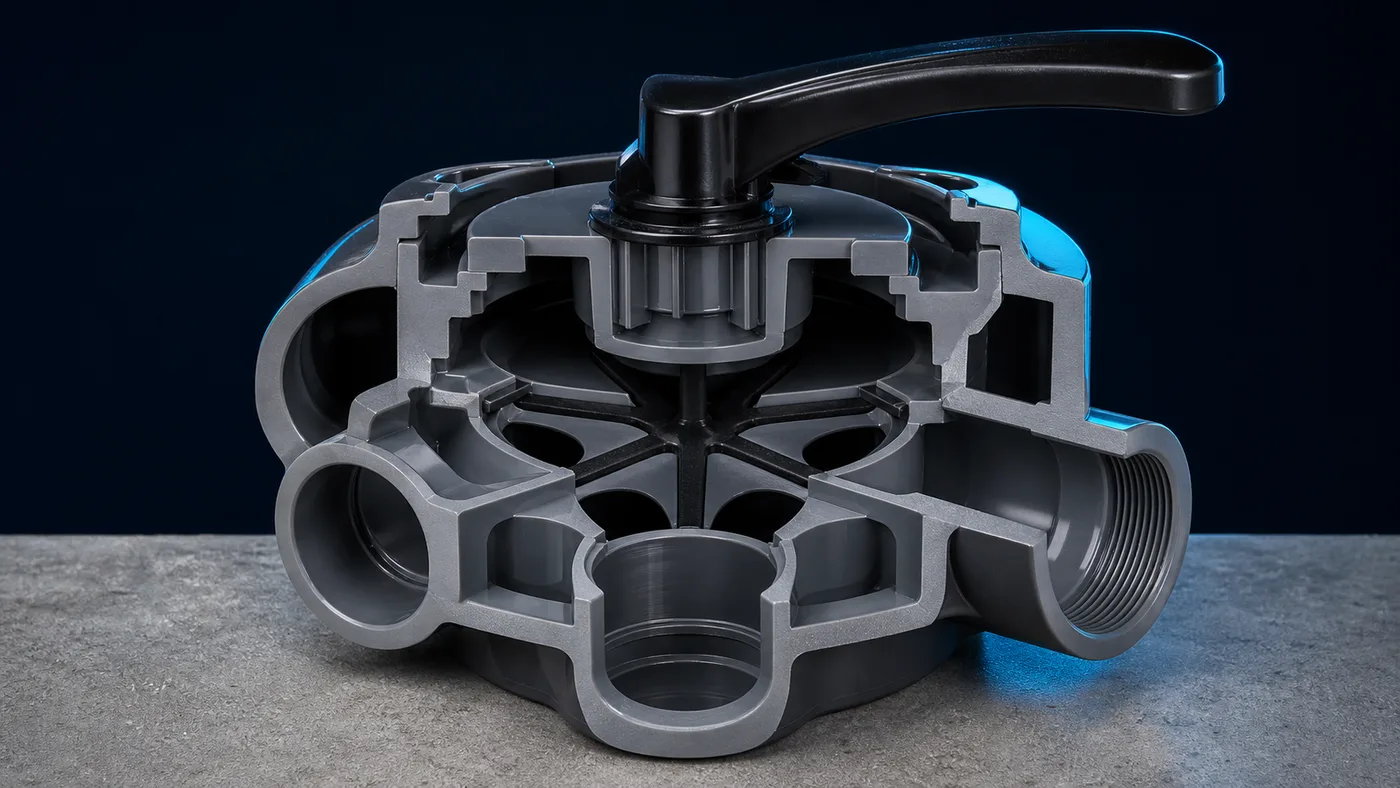

Under the handle sits a rotor — the diverter — that presses down onto a rubber spider gasket. The gasket's spokes divide the valve body into chambers, and whichever chambers the diverter connects determine where water goes. The entire sealing scheme is rubber spokes under compression; there are no machined metal seats. That is worth understanding because it explains every common failure: when a spoke tears, takes a compression set, or lifts out of its groove, water shortcuts between chambers, and no amount of handle force will stop it.

The diverter wears too. Its sealing face drags across the gasket at every position change, and its shaft rings and washers age like every other piece of rubber on the pad. Spider gasket and diverter are a matched sealing pair — diagnose them together.

Failure one: water running out the backwash line

The most common complaint. With the valve set to Filter, a steady stream leaves through the backwash port and the pool slowly loses water. Owners frequently mistake this for a shell leak or heavy evaporation, because the water disappears down a drain instead of pooling on the pad.

The cause is almost always the spider gasket spoke that isolates the backwash chamber: torn, flattened, or displaced from its groove. A displaced spoke is often the aftermath of moving the handle while the pump was running — water pressure lifts the rubber out of its channel and the diverter then chews it. Hence the cardinal rule of multiport operation: pump off before the handle moves, every time.

A quick field check: shut the pump off and watch the backwash line. Flow that stops the instant the pump does points at the gasket; flow that keeps siphoning still traces back to an internal bypass at the valve.

Failure two: leaks between positions

Subtler symptoms come from the same root cause. Cloudy water returning to the pool during a backwash, dirt blowing back to the pool right after one, pressure that never quite builds, a rinse position that behaves like recirculate — each means water is crossing between chambers that should be isolated. A single worn spoke produces oddly specific symptoms depending on which chamber boundary it guards, so do not rule the gasket out just because only one position misbehaves.

Leaks around the handle shaft or at the cover joint are the same story one layer up: aged rings and washers in the diverter stack rather than the spider itself.

Failure three: the handle fight

A handle that needs body weight to press down and turn is compressing a gasket that has swollen, scaled or hardened. A handle that turns with no resistance at all usually means the diverter is no longer engaging properly. Forcing a stiff handle is exactly how spokes get torn, so treat a hard handle as a service trigger, not a nuisance.

The repair decision: gasket kit or diverter kit

Open the valve to decide. Kill pump power at the breaker, relieve tank pressure at the air relief, remove the cover screws and lift the diverter assembly out.

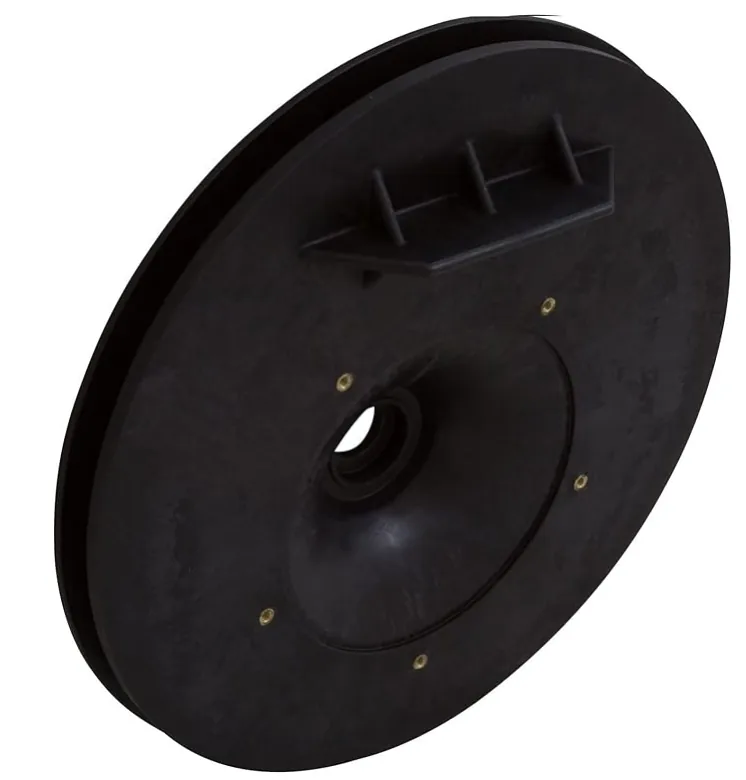

• Spider gasket worn, diverter face clean. A repair kit does the job. POOLPOINT's C176-47P1 multiport valve repair kit with spider gasket — the GO-KIT6 pattern, crossing Pentair C176-47P1, C203-193P and GO-KIT6 — renews the spider gasket and associated sealing parts in one service. Seat the new gasket fully into its grooves; use at most a trace of pool-safe lubricant and never adhesive unless the specific valve design retains the gasket that way.

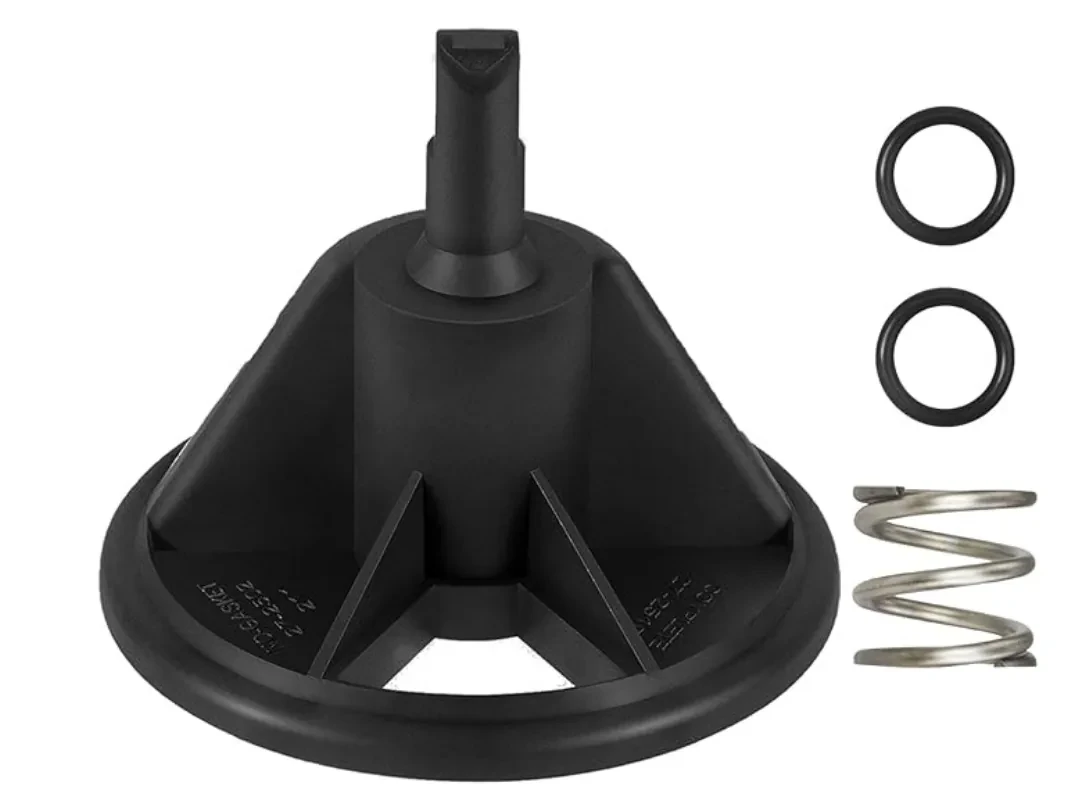

• Diverter face scored, shaft leaking, or engagement sloppy. Renew the moving half. POOLPOINT's 272512 diverter kit for 1.5-inch 6-way multiport valves crosses Pentair 261130, 262506, 272511, 272512, 272526 and 272535, replacing the diverter-side wear parts as a set.
• Both sides tired. Do both in one visit. A new gasket under a chewed diverter face starts grinding away from day one, and the labor to open the valve is already spent.

Reassemble with the cover screws tightened evenly in a cross pattern, then cycle the valve through every position with the pump off before restarting. Each position should land with a definite, even resistance.

While you are at the pad: check the diverter valves too

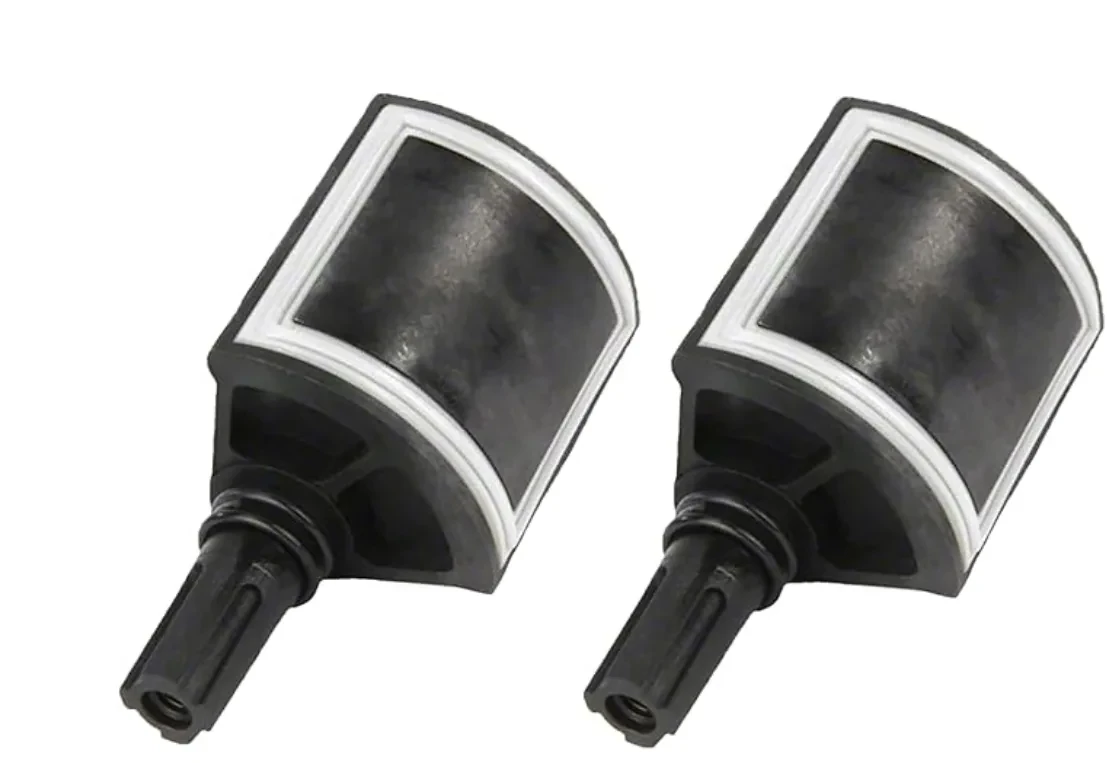

A multiport trouble call is the right moment to look over the other flow-control valves on the equipment pad, because they fail the same way for the same reasons. Where a 1-1/2 inch diverter valve is leaking past its seals or has a damaged body, POOLPOINT's 270075 diverter valve assembly — crossing Pentair 253036, 263035, 263037, 263038 and 270075 — replaces the complete unit. Catching a weeping pad valve during a multiport rebuild saves the customer a second invoice and the tech a second trip.
