Compatible with Jacuzzi
06016517R

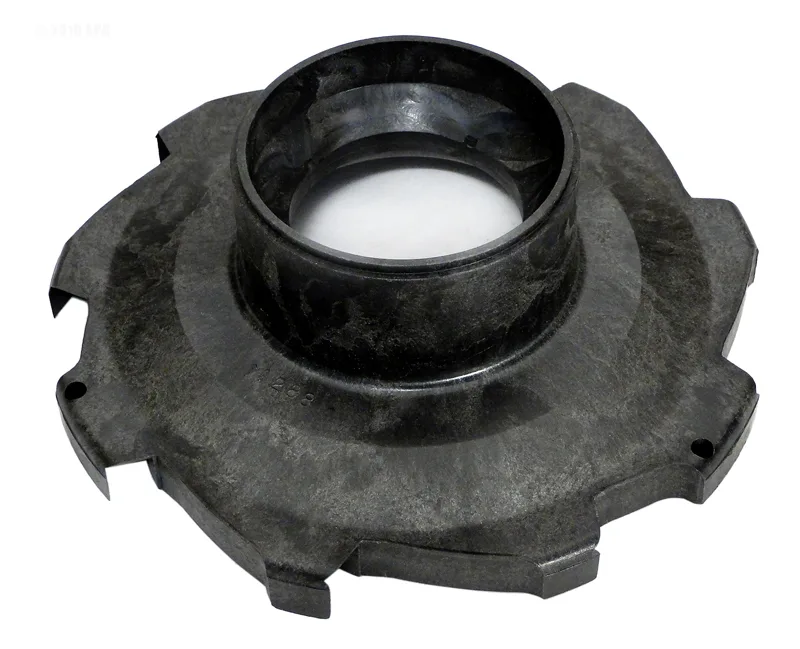

Diffuser, 3 HP HH, for Magnum Pumps, Compatible with Jacuzzi
Our part number
If the number stamped on your failed part differs, send it over — we will confirm the match against our fitment records.
OEM numbers listed for fitment identification only.
Specifications
| Compatible brand | Jacuzzi |
|---|---|
| Category | Pumps & Pump Parts |
| Material | Reinforced thermoplastic |
| Lead time | 15–25 days after order confirmation |
- MOQ 50 pcs · samples from 1
- Private label available
- Ships from our factory
Request wholesale quote
One request covers the whole list — no need to send them one by one.
Tiered pricing available above 1,000 pcs · OEM packaging available
Product overview
The Diffuser, 3 HP HH, for Magnum Pumps, Compatible with Jacuzzi is an aftermarket diffuser built to replace the original component in Jacuzzi circulation pumps. In service it converts the velocity leaving the impeller into pressure and directs flow into the discharge. This is a consumable in practice: the sealing lip and locating tabs wear, letting water recirculate inside the pump instead of moving downstream. Ours is molded in reinforced thermoplastic.
Fits these systems
Jacuzzi Magnum, Magnum Plus, and Magnum Force Pump Parts
Equipment models (not part numbers):
Not sure it fits? Send us a photo of your part and we'll confirm. Send a photo
Often sourced together
Fits Jacuzzi
Impeller, 1 HP Full Rate and 1.5 HP Up Rate, Compatible with Jacuzzi
Fits Jacuzzi
Pump Basket Assembly for Magnum Force Pumps After 2003, Compatible with JacuzziMore in this category
View all
Fits Universal
Skimmer Pump Conversion Kit for Summer Waves SFX1000 & SFX1500 Sand Pump
Fits Pentair
Locking Ring Clamp, Lid and O-Ring Set, WhisperFlo/IntelliFloSourcing questions
What equipment does 06016517R fit?
It fits Magnum, Magnum Force and Magnum Plus. Those are equipment models, not part numbers — order against 06016517R itself.
Is 06016517R a genuine Jacuzzi part?
No. POOLPOINT manufactures compatible aftermarket replacement parts. We are not affiliated with, sponsored by or endorsed by Jacuzzi; the brand name and OEM numbers are used to identify fitment only.
What is the minimum order quantity for 06016517R?
MOQ is 50 pcs per part, and mixed cartons are welcome to reach the order minimum. Samples are a separate case — we supply single pieces so you can confirm fitment before committing to a production run.
What material is 06016517R made from?
06016517R is produced in reinforced thermoplastic, dimensionally checked against an OEM sample before tooling is signed off.
